S100 CCTV Pipe Robot Inspection System Crawler Camera

S100 CCTV Pipe Robot Inspection System Crawler Camera is the smallest mainline inspection robot system. It is generally designed for Pipes DN 100-600 or 3.94“~23.62”.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of S100 CCTV Pipe Robot Inspection System Crawler Camera

S100 CCTV Pipe Robot Inspection System Crawler Camera is the smallest mainline inspection robot system. It is generally designed for Pipes DN 100-600 or 3.94“~23.62”. It is a all featured and compact sewer inspection robot. You can view record clear digital video, control crawler car movement, log observations, generate reports, and output the data or video to other display facilities.

Featuers of S100 CCTV Pipe Robot Inspection System Crawler Camera

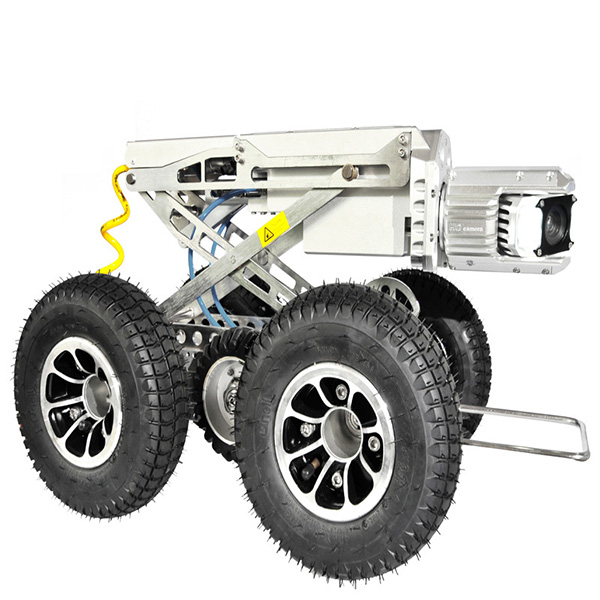

With compact design and reliable quality, S100 CCTV Pipe Robot Inspection System Crawler Camera lets you detect dangerous gas line cross-bores or oil tank leaking. Made with cutting-edge technology, S100 is designed for serious video inspection for narrow sewer pipelines. Four 130mm diameter tires option, camera lift, Led illumination facilities guarantees a easy transform in less than 10 minutes to inspect pipes 4”~24”diameter. The made in Swiss heavy duty motor drive with intelligent steering system to navigate past obstacles, and anti-overturning design wheels climb offset easier than similar crawler from other producers.

Advantages of S100 CCTV Pipe Robot Inspection System Crawler Camera

With remarkably dedicated and experienced R&D engineers, we are able to provide all kinds of customized S100 models. You can add side-scanning sonar, laser ranging, expandable backbone and camera lift mechanism. S100 works perfect with your existing crawler reel, control units and joysticks. The upgrading is very cheap and can be done in just 1minute.With option electric control cable reel, S100 CCTV Pipe Robot Inspection System Crawler Camera can travel as far as 300m (984’) into a pipeline.

Parameter of S100 CCTV Pipe Robot Inspection System Crawler Camera

Features

* 6-wheels drive,steerable to navigate over obstacles and bend pipes

* Great interchangeability allows for cheap system upgrading

* Expansion interface for sonar, laser, ect.

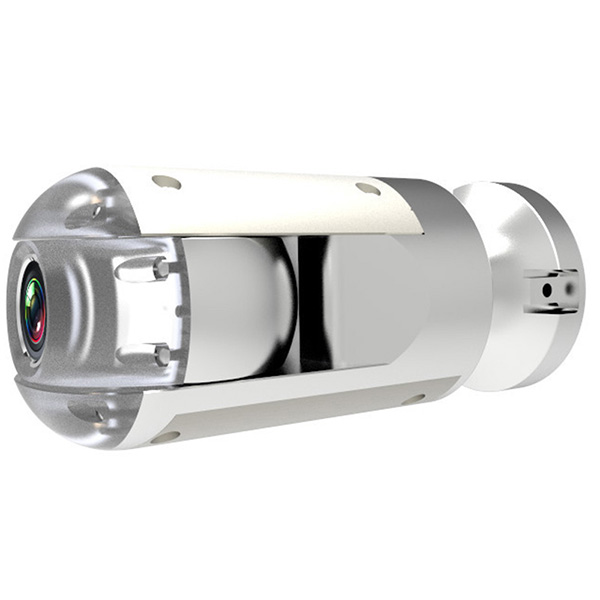

Camera Head

Camera Head

* Camera sensor: 1/4”540TVL Sony CCD

* Sensitivity: 0.01 LUX;Capable of working in the dark

* Zoom:120 times (10X optical, 12X digital)

* Illumination:4*10w High brightness LED ligths

* Rotation: 360-degree pan, 270-degree tilt

* Auto focus/Iris and auto leveling to provide always upright image

* Diameter: 90mm

* Waterproof level: IP68

* Weight: 2.2KG

* Working temperature: -20-55

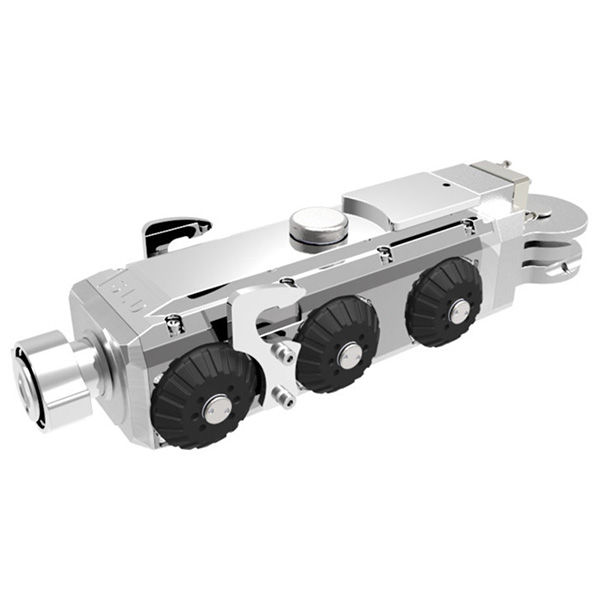

Crawler

Crawler

* For 4" to 23.6" lateral pipelines

* Steerable to traverse bend pipes and navigate over obstacles.

* Weight:l3.1Ibs.

the pipe.

* Pressure Rating:1 bar

* Turn Radius:down to 0.0”

* Compatible with SD9991E and SD9991F cable reel

* Can spin on the spot

* Expansion interface for sonar, laser, ect.

* Sensors:pitch, slope, pressure

* Size:15.2" x 2.9" x 3.9"

* aviation aluminum with oxidation process

* Explosion-proof,waterproof

* Operation temperature:-20-55

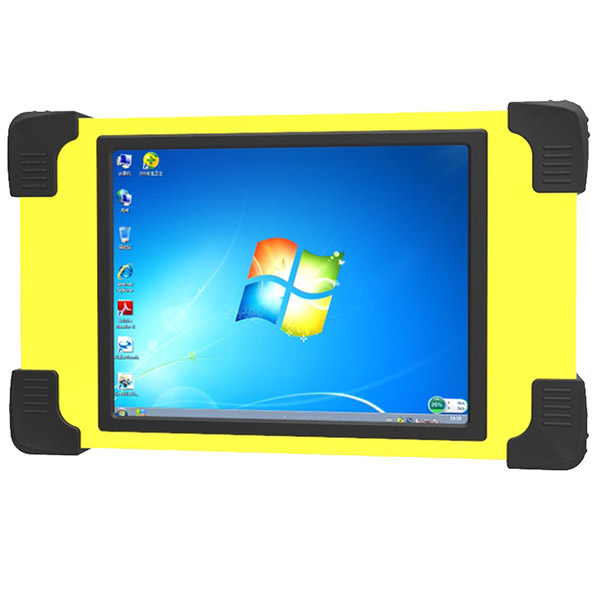

Monitor

Monitor

* 12.1“ sunlight viewable touch control LCD

* Record inspections to 64GB SSD

* Water-proof standard:IP53

* All featured software regulates crawler motion,cable reel winding up and persistently measures pressure,slope and distance,ect.

* Size:L426mm*W266mm*H52mm

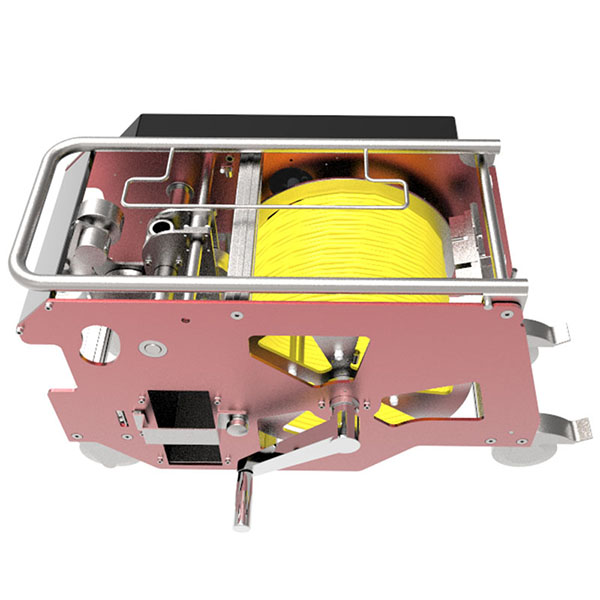

Cable Reel

Cable Reel

* Optional manual or auto cable winding up component;

* Material: Aviation aluminum+PC plastic

* Meter-counter:Distance constantly displayed on screen;erro<10cm

* Waterproof: IP53;

* Reinforced semi-rigid cable;Load capacity:150KG.OD:9mm

* Size: 70cm*44cm*48cm

* Size:120m standard cable length(100-300m customizable)

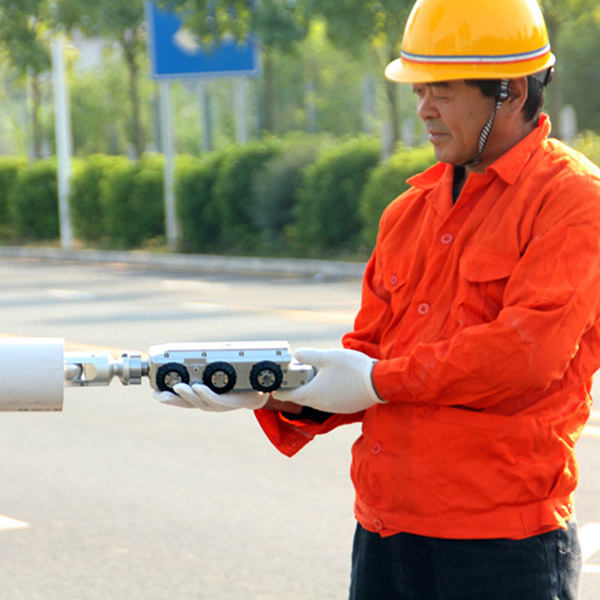

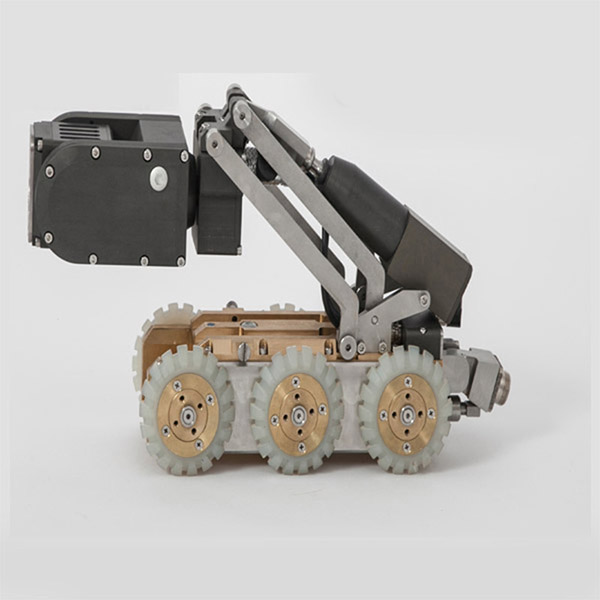

Pictures of S100 CCTV Pipe Robot Inspection System Crawler Camera
