MKS-05 Terra Personal Nuclear Radiation Detector

MKS-05 Terra Personal Nuclear Radiation Detector is designed by the military industrial enterprises "SPPE" a military level of multi-purpose personal dose alarming device, can measure gamma χ gamma ra

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of MKS-05 Terra Personal Nuclear Radiation Detector

MKS-05 Terra Personal Nuclear Radiation Detector is designed by the military industrial enterprises "SPPE" a military level of multi-purpose personal dose alarming device, can measure gamma χ gamma radiation dose equivalent rate and dose equivalent and beta radiation surface contamination.
MKS-05 Terra Personal Nuclear Radiation Detector can also record dose equivalent total time, at the same time have a clock and alarm clock function.
The MKS-05 Terra Personal Nuclear Radiation Detector has high sensitivity and wide measuring range, it has been in the military and civilian fields has been widely used.

Application of MKS-05 Terra Personal Nuclear Radiation Detector

MKS-05 Terra Personal Nuclear Radiation Detector is suitable for radiation protection of the army, civil construction evaluation of radioactive detection, industrial x-ray gamma nondestructive flaw detection, radiation health facilities, cobalt and electron accelerator irradiation field, radioactive lab, nuclear facilities in the surrounding environment, and homeland security, daily radiation protection and other fields.

Functional Features OF MKS-05 Terra Personal Nuclear Radiation Detector

1.five independent measurement channels
2. built-in gamma, beta sensitive GM counters
3. measuring background radiation intensity for 10 seconds
4.when measuring beta radiation radial minus the gamma background automatically
5. average measurement results, it can be manually or automatically
6.can execute the default relative error of measurement
7.automatic adjustment of measurement range and time conversion
8.each radiation noise source function indicators measure found to events, and can be closed.
9. than setting alarm threshold will give alarm
10. alarm methods are sound or noise, vibration, and vibration
11.large digital LCD display with backlight
12.display unit of measure, at the same time and clock alarm threshold
13.ten video simulation indicates a radiation intensity scale
14.level 4 battery indicator
15.1200 groups of data may be stored
16. computer via Bluetooth connection
17.high strength impact resistance of the shell structure, compact design
18.CE certification, and has been widely used in the army

Parameter of MKS-05 Terra Personal Nuclear Radiation Detector

Name

Unit

Standardized values according to the TD

Measurement range of photon-ionizing radiation EDR

mSv/h

0.1-999.9

Main relative permissible error limits of gamma radiation EDR measurement with 0.95possibility

%

+/-(25+2/D),D- is a numerical value of EDR measurement in mSv/h

Measurement range of gamma radiation ED

mSv

0.001-99.99

Main relative permissible error limits of gamma radiation ED measurement with 0.95%possibility

%

+/-15

Energy range of registered gamma radiation

MeV

0.05-3.00

Energy response of the dosimeter readings at gamma radiation EDR and ED measurement in the energy range from 0.05 to1.25MeV

%

+/-15

Beta-particles flux density range with possible evolution of surface contamination by beta radio nuclides

Part./

(cm2-min)

10-1

Registered beta-particles energies range

MeV

0.5-3.0

Time of continuous operation of the dosimeter from batteries(“Energizer”AAAx2of1280mA-h capacity)at natural background radiation, not less than

hrs

2000

Dimensions of the dosimeter, not more than

mm

55x26x120

Weight of the dosimeter, not more than

kg

0.15

Purpose of Use of MKS-05 Terra Personal Nuclear Radiation Detector

1.Measurement of gamma radiation equivalent dose rate.;

2.Measurement of gamma radiation equivalent dose.

3.Evaluation of surface contamination by beta radionuclides.

4.Clock,alarm clock. Standard delivery: Main unit Bag Lanyard Packing Box Calibration test Instruction manual AAA batteries

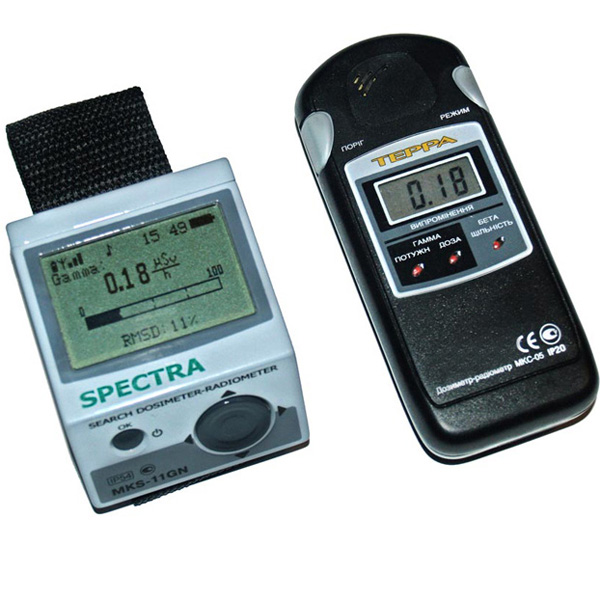

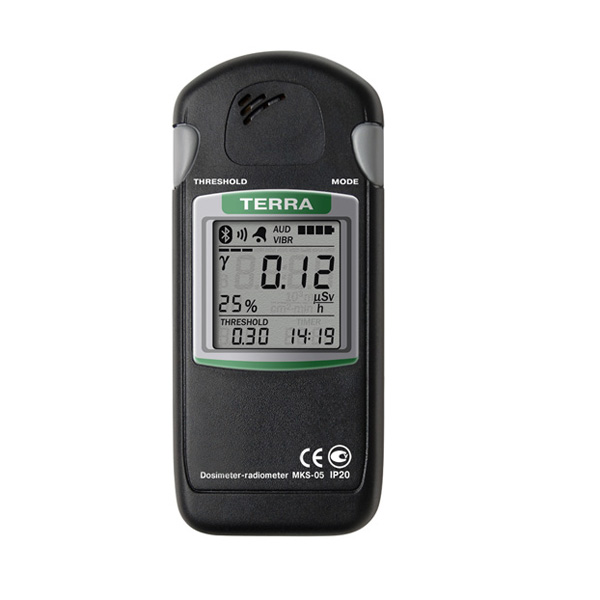

Pictures of MKS-05 Terra Personal Nuclear Radiation Detector
