Ultrasonic Thickness Measurement Gauge Tool

This model Ultrasonic Thickness Measurement Gauge Tool is a handheld digital gauge tool for measuring thickness, also known as thickness detector. Suitable for measuring metal (such as steel, cast iro

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Ultrasonic Thickness Measurement Gauge Tool

This model Ultrasonic Thickness Measurement Gauge Tool is a handheld digital gauge tool for measuring thickness, also known as thickness detector. Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasonic thickness.

Parameter of Ultrasonic Thickness Measurement Gauge Tool

Measuring Range

1.2-220.0mm(Steel)

Accuracy

±(1%±0.1)mm

Pipe Measuring Lower Limit

φ20*3mm(Steel)

Sound Velocity Range

1000-9999m/s

Working Frequency

5MHz

Working Temperature Range

0-45°C

Automatic Zero Adjustment

Data Store Function

Auto Power Shut Off

Low Battery Indication

3V±0.2V

Power

1.5 V AAA * 3PCS

Packing

 color box + PP Tool Box

Product weight

 210 grams

Product Dimensions

 70 * 145 * 28 mm

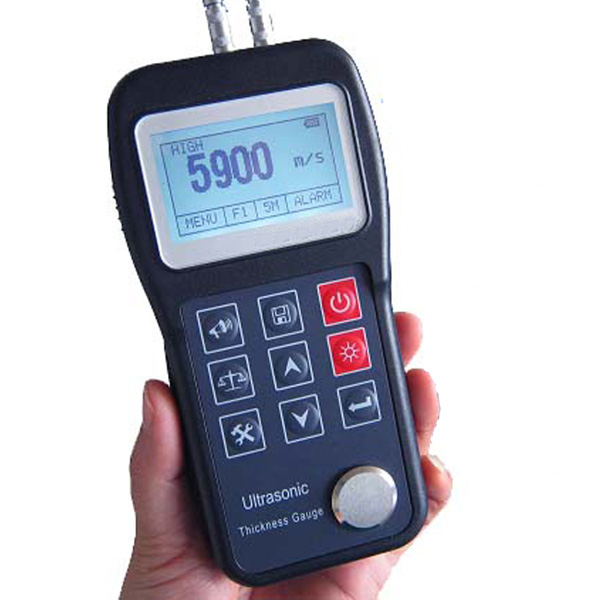

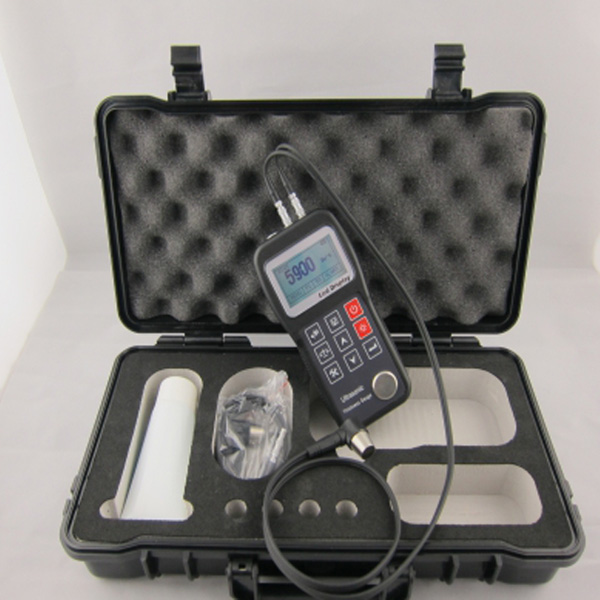

Pictures of Ultrasonic Thickness Measurement Gauge Tool
