HL180 Portable Lee Hardness Tester

HL180 Portable Lee Hardness Tester also known as durometer, is a widely used digital handheld superficial hardness testing machine. Our HL180 Portable Lee Hardness Tester sold well in worldwide especi

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of HL180 Portable Lee Hardness Tester

HL180 Portable Lee Hardness Tester also known as durometer, is a widely used digital handheld superficial hardness testing machine. Our HL180 Portable Lee Hardness Tester sold well in worldwide especially in UK and India.

Parameter of HL180 Portable Lee Hardness Tester

Measuring Range

(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA(13 -100)HRB

Measuring Direction

HL,HB,HRB,HRC,HRA,HV,HS

Indicating Error

HLD:±5; HRC:±1; HB:±4

Memory

100 Groups test maximum

Printer

Built-in Printer

DOS shell Material

Plastic

Statistics

Average value, min-max ,upper-lower limits

Data-Output

USB1.0 to
Hyperterminal (MS)

Impact Device

D (standard)

Optional impact Devices

DC/D+15/DL/G/C/E

Dimension

212mm×72mm×30mm

Power Supply

6V,500mA(1.8VA),
A2.5-4 hours

125<HBW≤225

0 ℃ to 40 ℃

Weight

220g (Excluding impact device and printer)


Standard Configuration of HL180 Portable Lee Hardness Tester

Main unit
Impact Device type D

Test block HLD

Charger

Brush

Connecting cable

TIMES certificate

Instruction manual

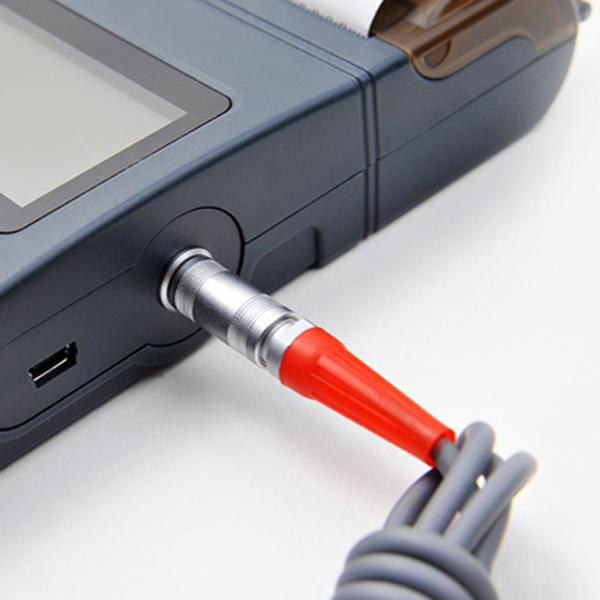

Pictures of HL180 Portable Lee Hardness Tester
