Handheld Automatic Superficial Hardness Tester

1. Our hardness testing equipment-Handheld Automatic Superficial Hardness Tester equipped with On-Board memory which can holds 500 groups of data 2.Automatic identification Impact Devices and test dir

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Handheld Automatic Superficial Hardness Tester

1. Our hardness testing equipment-Handheld Automatic Superficial Hardness Tester equipped with On-Board memory which can holds 500 groups of data

2.Automatic identification Impact Devices and test direction (Except G impact device)

3.Equipped with integral thermal printer,

4.Li Battery , low voltage indication and sound alarm

5.Dataview for PC operation

6.Upper / lower limits setting and sound alarm

7.Six impact devices available for different application *

Large LCD with back-light, showing all functions and parameters

8.Direct display of hardness scales HRB, HRC,HV, HB, HS, HL

9.Conversion to tensile strength (U.T.S.)

10. Handheld Automatic Superficial Hardness Tester has wide measuring range

Parameter of Handheld Automatic Superficial Hardness Tester

Measuring Range

(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA(13 -100)HRB

Measuring Direction

HL,HB,HRB,HRC,HRA,HV,HS

Indicating Error

HLD:±5; HRC:±1; HB:±4

Memory

100 Groups test maximum

Printer

Built-in Printer

DOS shell Material

Plastic

Statistics

Average value, min-max ,upper-lower limits

Data-Output

USB1.0 to
Hyperterminal (MS)

Impact Device

D (standard)

Optional impact Devices

DC/D+15/DL/G/C/E

Dimension

212mm×72mm×30mm

Power Supply

6V,500mA(1.8VA),
A2.5-4 hours

125<HBW≤225

0 ℃ to 40 ℃

Weight

220g (Excluding impact device and printer)

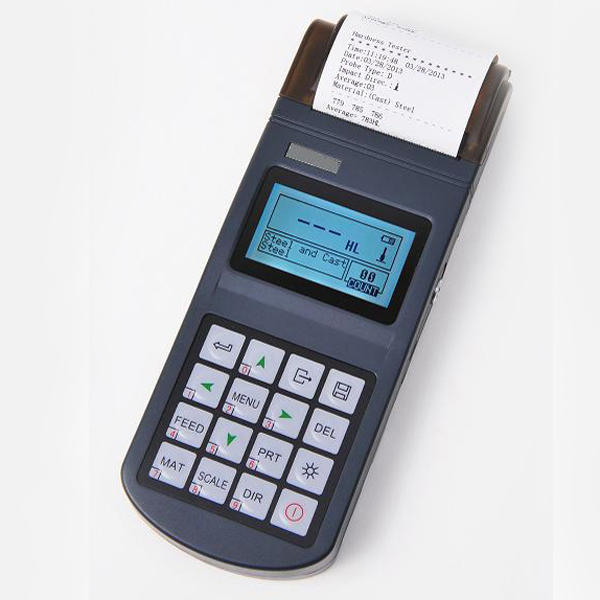

Pictures of Handheld Automatic Superficial Hardness Tester
