V8-3188DK Video Camera for Plumbing Pipe Inspection

Waterproof V8-3188DK Video Camera for Plumbing Pipe Inspection with 23mm stainless steel camera head which with 512Hz transmitter, is mainly designed for inspecting pipe from 253mm to 200mm.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of V8-3188DK Video Camera for Plumbing Pipe Inspection

 1)Waterproof V8-3188DK Video Camera for Plumbing Pipe Inspection with 23mm stainless steel camera head which with 512Hz  transmitter,  is mainly designed for inspecting  pipe from 253mm to 200mm.

2) 8" color LCD monitor with sunshade, high definition and can be observed under strong sunshine.

3)DVR control box easy to record and replay video, photo.

4)A removable SD Card records images and video for later review and easy transfer to a PC for reporting or sharing via  email.

5)15 pcs high brightness LEDs lighting can easily check all pipes problem inside

6) Φ5.2mm x 30m Fibreglass push rod cable;

7) Built-in rechargeable Li-ion battery

8) Portable ABS engineering case.

Parameter of V8-3188DK Video Camera for Plumbing Pipe Inspection

Camera



Camera size

Φ23 x 45mm for pipe Φ25 to 200mm

Camera casing material

stainless steel

Camera lens material

Sapphire glass

Sensor size

700 TVL 1/4 inch CMOS

Viewing angle

120°

LED lighting

12 pcs high light white LEDs

Waterproof level

IP68

Pixels

PAL 720X576 NTSC 720X 480

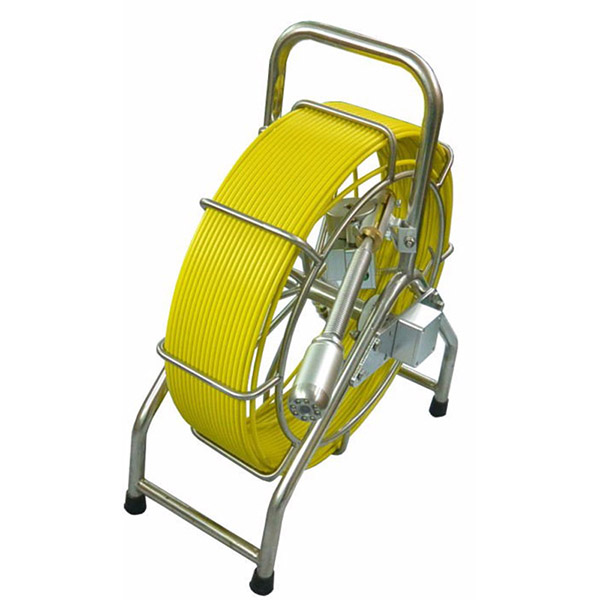

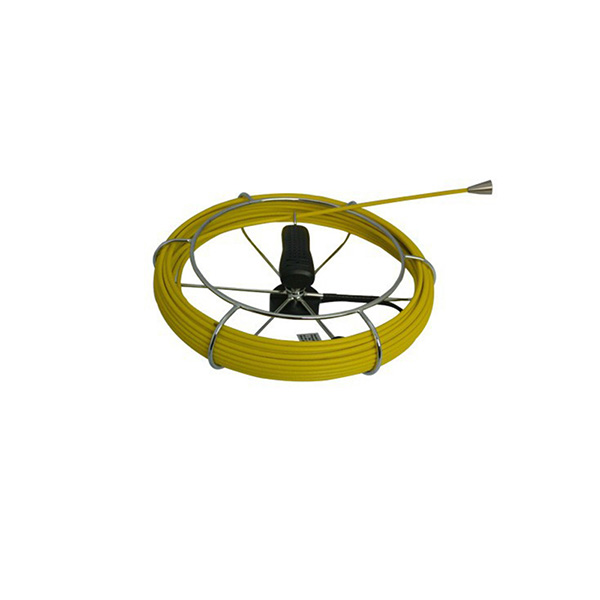

 Cable Reel

Cable Reel

Cable size

Φ320x110mm

Cable reel materail

Stainless steel

Cable materail

Fiberglass rod

Cable length

20m(standard) / 30m / 40m / 50m

Cable diameter

Φ5.2mm

Cable color

Yellow

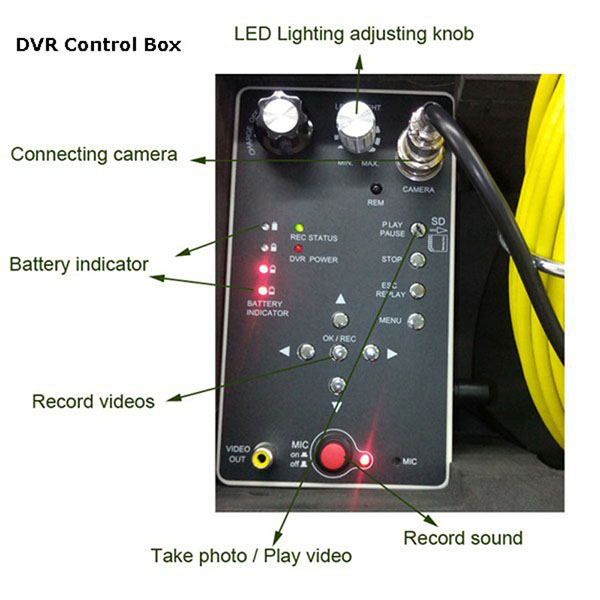

 DVR Controller

DVR Controller

Audio, video, photo, recording & playback function

Storage medium: removable SD card (Max64G)

Digital clock and calendar

Battery level indicator lights

LED brightness adjustable

On / off microphone

Up, down, left, right adjustable

Video output to another screen

Remote controller and fuse included

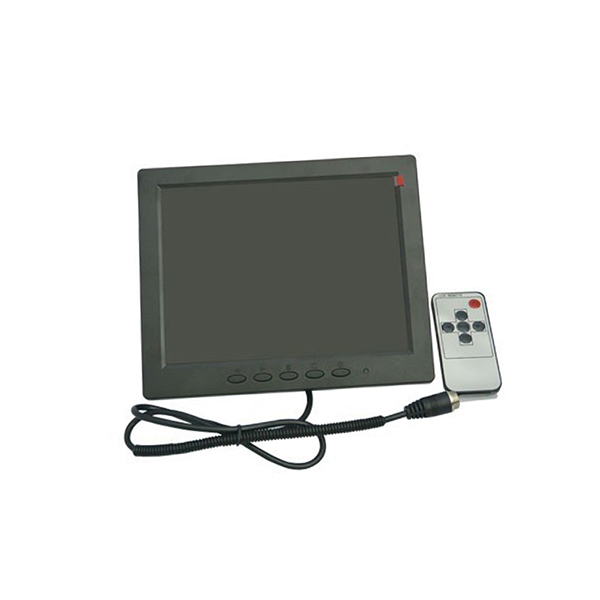

 Monitor

Monitor

Monitor size

8 inch TFT LCD color screen

Pixels

800 x 600

Display model

4:3

OSD language

English

Power supply

DC12V

Sunshade and remote controller included

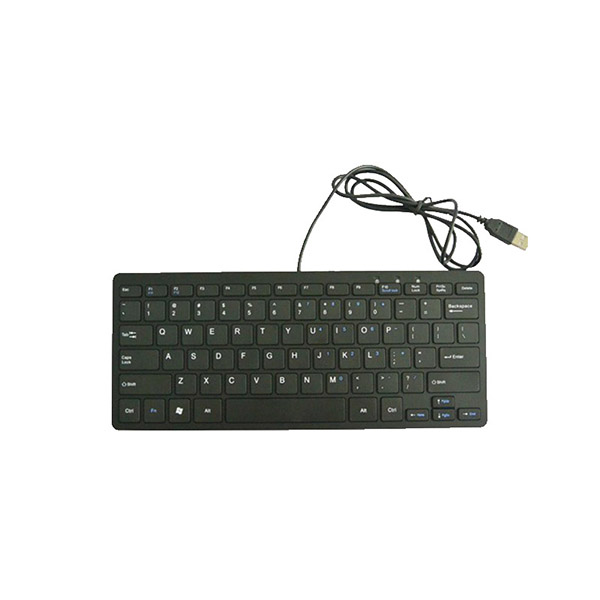

 Removable USB keyboard

Removable USB keyboard

2m lead wire

USB port keyboard connect to DVR controller for text input

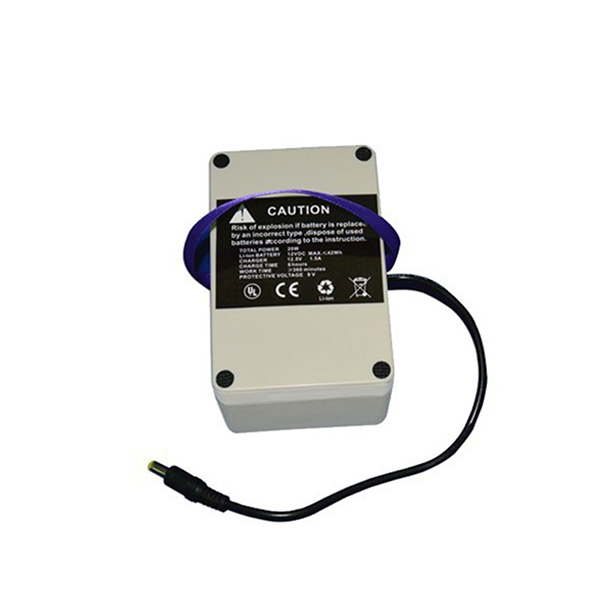

 Battery & Charge

Battery & Charge

Battery

12V 6600mAh rechargeable li-ion battery

Charger

AC110V-240V 1.5A charge

Working time

6 hours

Skids Size

Big skids

Φ85mm

Small skids

Φ40mm

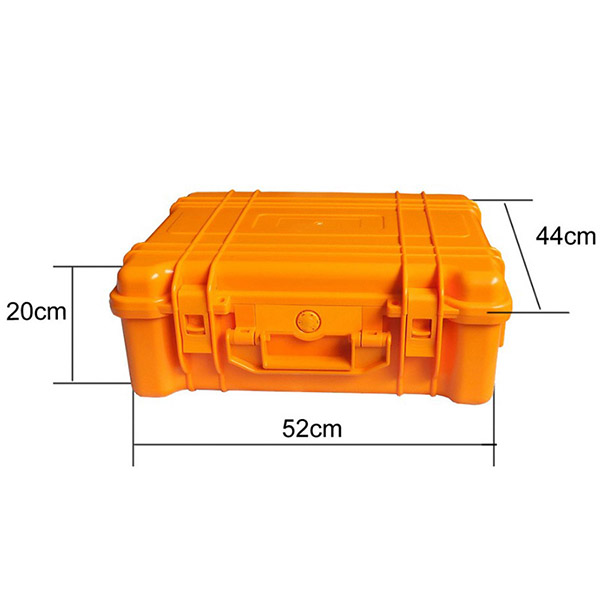

 ABS Engineering Case

ABS Engineering Case

Case size

520 x 435 x 200mm

Case materail

Fire board & Engineering Plastic

Case color

Orange / Green / Black

Unit operating temperature

-10°C to +50°C

Storage temperature

-20°C to +70°C, RH 95% maximum



Sewer Pipe Inspection Camera Applications

Widely be used in video pipe, water well, drain, sewer, pipeline, plumbing & gas, chimney, duct, manhole, borehole inspection, etc.

Industrial, machinery & building inspection etc.

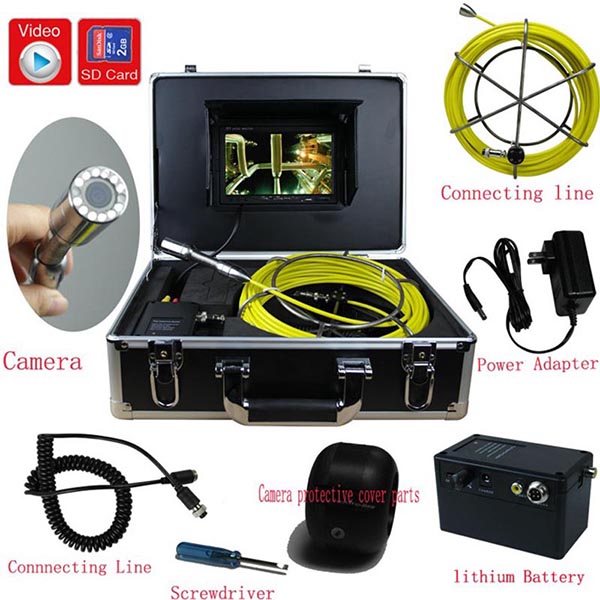

Pictures of V8-3188DK Video Camera for Plumbing Pipe Inspection
