V10-3188DK Self Levelling CCTV Video Camera for Underwater Pipeline Inspection

Our pipeline inspection equipment- V10-3188DK Self Levelling CCTV Video Camera for Underwater Pipeline Inspection, equipped with cmos camera and stainless steel camera head which make it more stable c

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of V10-3188DK Self Levelling CCTV Video Camera for Underwater Pipeline Inspection

Our pipeline inspection equipment- V10-3188DK Self Levelling CCTV Video Camera for Underwater Pipeline Inspection, equipped with cmos camera and stainless steel camera head which make it more stable compared with other waterproof inspection cameras.

Parameter of V10-3188DK Self Levelling CCTV Video Camera for Underwater Pipeline Inspection

Camera Head

* Self-levelling Φ23x 53mm for pipe Φ25 to 200mm
* Camera head casing material stainless steel
* Camera lens window material sapphire glass
* Sensor size 1/4 inch CMOS camera
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°,IP68 waterproof
* 12pcs high intensity white LED

Monitor

*10 inch TFT LCD monitor
* Brightness:400cd/m2* 4:3 display model

* Resolution:

DVR Control Box

* DVR control buttons
* SD card (max 64G) jack,keyboard jack

* LED brightness adjusting knob

* A / V & photo selection available

* On/off microphone control button

* Battery level indicator lights

Battery pack & Charger

* 6600mA li-ion battery
* AC110-240V 1.5A charger
* Charging time 5 hours, working time 6 hours

Cable Reel with Meter Counter

* Fibreglass push rod cable
 * Cable length from 20m to 50m optiona

* Reel size Φ320x110mm

Carrying case

* ABS carrying case: 520 x 435 x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

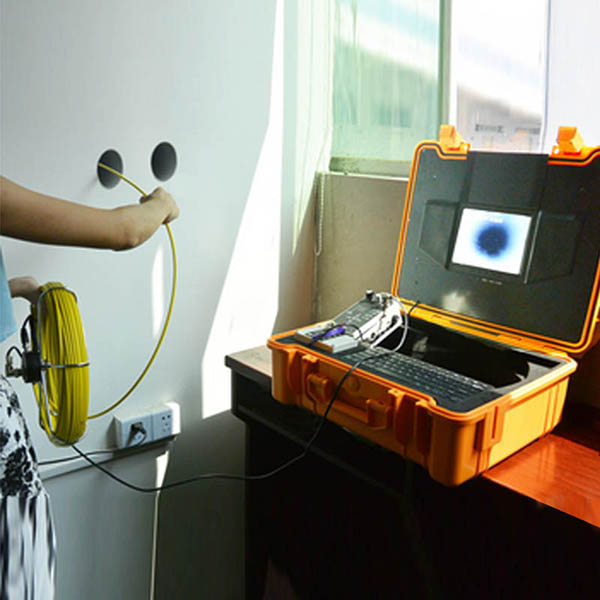

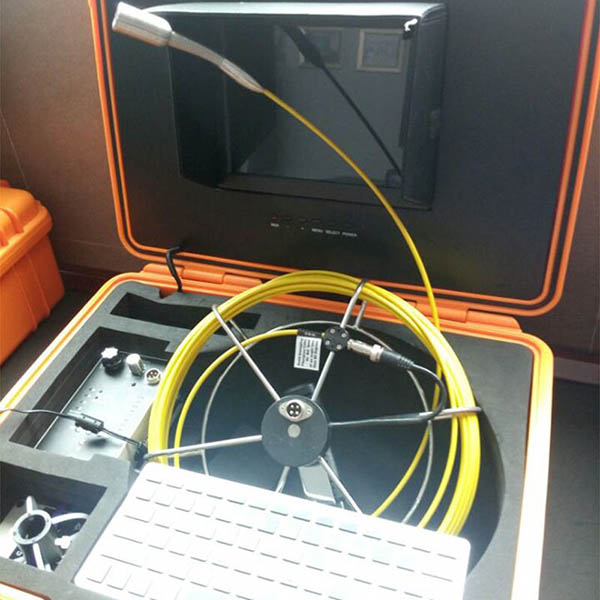

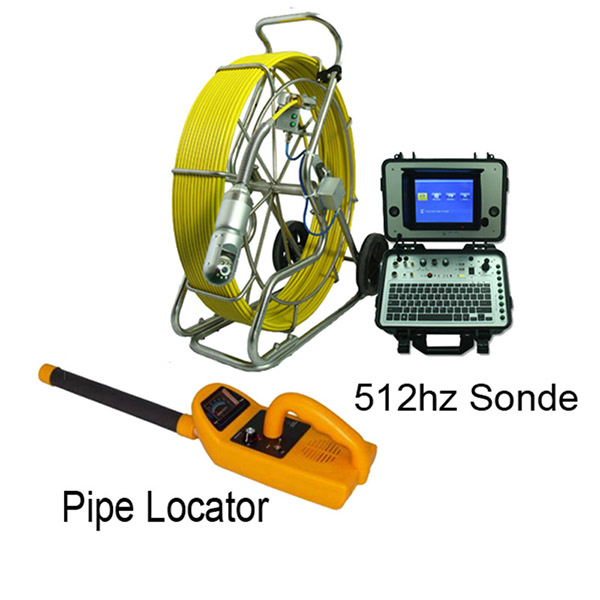

Pictures of V10-3188DK Self Levelling CCTV Video Camera for Underwater Pipeline Inspection
