Handheld O2 Oxygen Gas Detector

1. Handheld O2 Oxygen Gas Detector suitable for industry use, high sensitivity and accuracy 2. Intrinsically safe, Ex sign is ExibdⅠ 3. Rugged ABS+PC case, heavy duty, crash resistant 4. High-capacity

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Handheld O2 Oxygen Gas Detector

1. Handheld O2 Oxygen Gas Detector suitable for industry use, high sensitivity and accuracy

2. Intrinsically safe, Ex sign is ExibdⅠ

3. Rugged ABS+PC case, heavy duty, crash resistant

4. High-capacity chip, 4 layers PCB board

5. Visual & audible alarm

6. High & low alarm point, fully adjustable

7. SETL & TWA alarm

8. Low battery alarm

9. Rechargeable battery

10. LCD large screen display with Real time clock and status of battery

11. With Stainless Steel belt clip

12. Support data logging function

13. External air sampling pump is available for gas leak detection.

Application of Handheld O2 Oxygen Gas Detector

The gas detection instruments Handheld O2 Oxygen Gas Detector we designed are widely used in petrochemical, municipal environmental protection, coal mine, residential places, and other natural and wide ranges of industrial environments.

Parameter of Handheld O2 Oxygen Gas Detector

Gas detected

Oxygen (O2)

Measuring range

(0~25)%vol, (0~30)%vol

Resolution ratio

0.1%vol

Sensor

CITY Electrochemical Sensor

Sensor lifetime

≥2 year

Response time

≤35s(T90)

Alarms

Audible--buzzer with ≥75dB audible

Visible--flashing red LED, ≥20m visible

Alarm point

Fully adjustable

Data logging

Continuous data logging (7 days at

configurable 0.1-10 minutes intervals)

Continuous working time

>3 months ( without backlight)

Working current

< 1mA ( without backlight)

Working temperature

-25°C~+55°C, short time: -40°C~+55°C

Display

Liquid crystal display (LCD)

Battery model

PL123450, 3.7V/1500mA

Charging time

4-5 hours

Dust and water resistance

IP54

Size & Weight

105*54*32mm/450g

Ex sign

ExibdⅠ

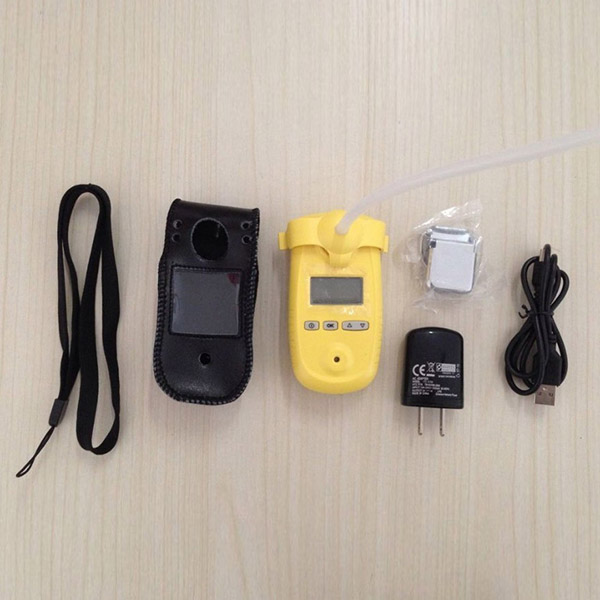

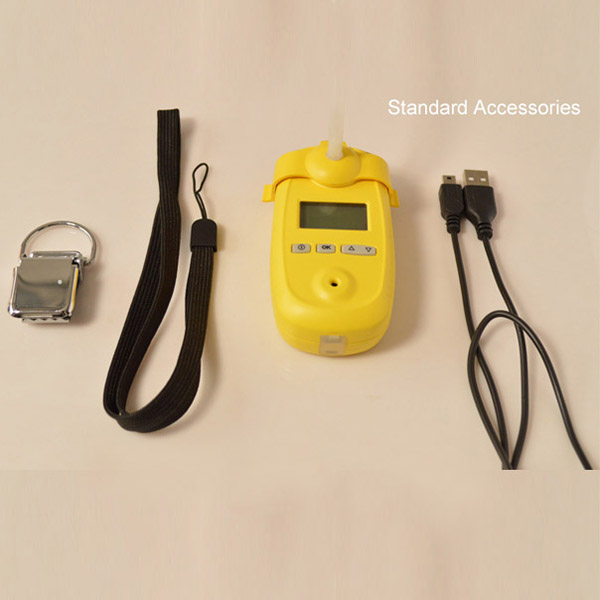

Pictures of Handheld O2 Oxygen Gas Detector
