Position: Home » Product List » Gas Detector » Ammonia (NH3) Portable Gas Detector with Pump

Ammonia (NH3) Portable Gas Detector with Pump

Ammonia (NH3) Portable Gas Detector with Pump is widely used for Disinfection, chemical fertilizers, resins, adhesives and pesticides, raw materials, samples, process and breeding plants, waste treatm

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Ammonia (NH3) Portable Gas Detector with Pump

1 Ammonia (NH3) Portable Gas Detector with Pump is widely used for Disinfection, chemical fertilizers, resins, adhesives and pesticides, raw materials, samples, process and breeding plants, waste treatment plants, perm places

2. Biopharmaceutical production workshops, home environment, livestock breeding, greenhouse cultivation, storage and logistics, brewing fermentation, agricultural production

Function of Ammonia (NH3) Portable Gas Detector with Pump

1. Monitoring of the environment, or the concentration of formaldehyde in a confined space and give an alarm

2. With self-check function, zero calibration function, so that gas monitoring more accurate and reliable

3. One key to restore the factory settings, can be removed from misuse problems

4. With temperature and pressure compensation, to achieve the perfect, different temperature and pressure environment, the gas concentration compensation

5. Two sound and light alarm, alarm point can be set their own

6. Large-capacity lithium polymer rechargeable battery

7. Pump suction sampling, adjustable suction pump

8. Shell with high-strength special engineering plastics, non-slip, waterproof, dustproof, explosion

9. Exquisite upscale aluminum suitcase

Parameter of Ammonia (NH3) Portable Gas Detector with Pump

Gas Detected

Ammonia (NH3)

Detection principle

Electrochemical principle, the principle of infrared, catalytic combustion principle, PID photoionization principle etc.

Sampling Method

Pumping, flow rates up to 1L / min,pumping have ten stalls

Measure Range

0-50ppm,0-100ppm,0-200ppm

Resolution

0.01PPM,0.1PPM,1PPM

Precision

2%FS

Signal Output

USB interface high-speed data transmission, can download and print data (optional)

Response Time

≤10S

Recovery Time

≤10S

Repeatability

≤±1%

Linearity error

≤±1%

Zero shift

≤±1%(F.S/year)

Display

LCD dot matrix display technology

Operating language

English and Chinese

Gas unit

Support for multiple gas unit switch display

Temperature

-40℃~70℃

Humidity

0-95%RH

Explosion-Proof

ExiaⅡCT4

Degree of protection

IP66

Alarm model

Sound, light, vibration

Operating time

100 hours (off pump))

size

205*75*32mm

weight

300g

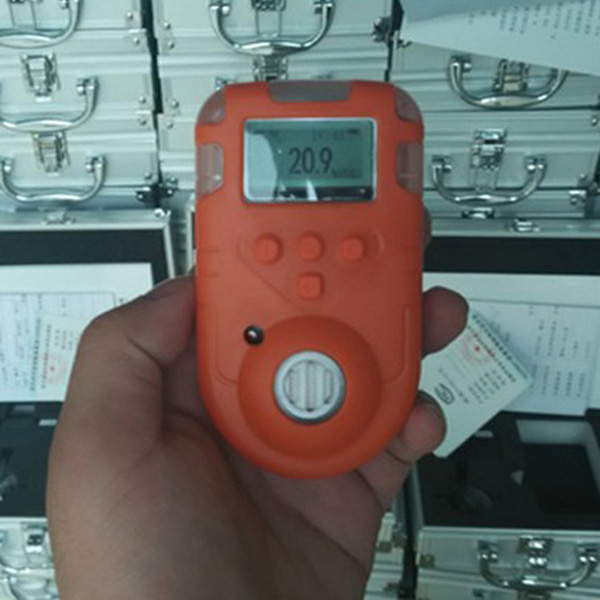

Pictures of Ammonia (NH3) Portable Gas Detector with Pump
