ZBL-R630A Reinforcement Concrete Cover Meter

ZBL-R630A Reinforcement Concrete Cover Meter features the world’s first wireless onsite data transfer function for such a device and remote management is also available

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of ZBL-R630A Reinforcement Concrete Cover Meter

We provide cover meter for surveying concrete with reasonable price and reliable quality.

Features of ZBL-R630A Reinforcement Concrete Cover Meter

1.This ZBL-R630A Reinforcement Concrete Cover Meter features the world’s first wireless onsite data transfer function for such a device and remote management is also available

2.Data can be stored on a usb-thumb drive, great for field work

3.This ZBL-R630A Reinforcement Concrete Cover Meter can generate rebar distribution map and rebar corrosion potential contour graph.

4.Powerful professional analysis-process software allows for the automatic generation of test reports.

Parameter of ZBL-R630A Reinforcement Concrete Cover Meter

Applicable range

6mm~50mm

Corrosion detection method

Single electrode

Double electrode

Protective layer thickness range (mm)

First range

Second range

Measuring range

±1000mV

0~1000 mV

3~98

3~200

Accuracy

±1mV

±1mV

Maximum allowed error for protective layer

±1 mm

6~59

10~79

Tested points Interval X

0~100 adjustable

20 fixed,

±2 mm

60~69

80~119

Tested points interval Y

0~100  adjustable

0~100  adjustable

±4 mm

70~90

120~200

Power

Built-in chargeable lithium battery

Maximum allowed error for diameters measurement

±1 rebar standard level

Battery Time

>40 hours

Data transmission

wireless transmission

Dimensions

212mm´134mm´50mm

USB port

thumb drive storage available

Weight

0.9kg

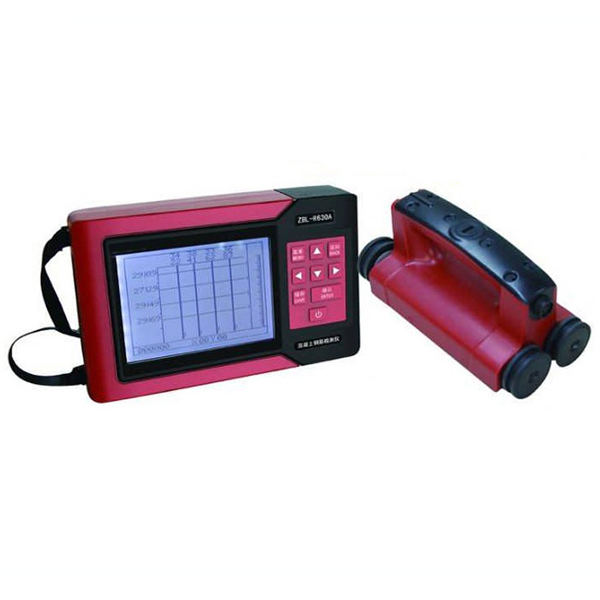

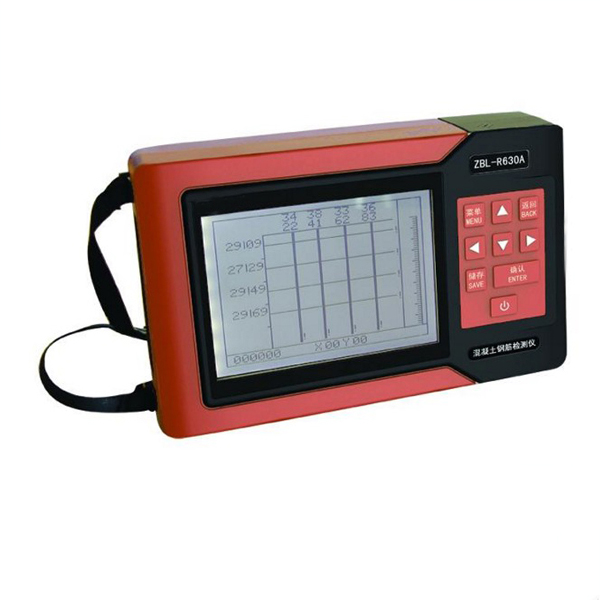

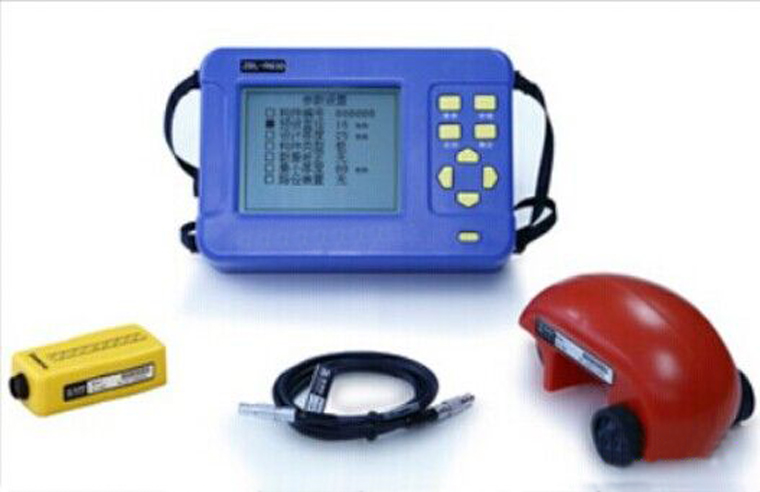

Pictures of ZBL-R630A Reinforcement Concrete Cover Meter
