ZBL R650 Concrete Rebar Scanner

The ZBL R620 Portable Concrete Rebar Locator is an portable, quick and easy-to-use instrument for inspecting reinforcing bars in concrete. T

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of ZBL R650 Concrete Rebar Scanner

ZBL R650 Concrete Rebar Scanner is widely sued for testing the Location, distribution, direction, and diameter of the rebar and the thickness of concrete cover in concrete structure projects such as bridges, tunnels, walls etc.

Functions of ZBL R650 Concrete Rebar Scanner

1 Detecting Ferro magnets in non-ferromagnetic media;

2. Evaluating the quality of construction;

3. Evaluating the integrity and the durability of existing structures;

4. Testing the quantity of rebar when evaluating and developing the old structure;

5. Testing the distribution and direction of electric cables and plumbing inside walls and floors.

Feature of ZBL R650 Concrete Rebar Scanner

1. Uni-probe with two detect range: the uniprobe has both a small and large detect range;

2. Detect closely located bars: can detect closely situated, parallel bars with 1.5 diameter gap;

3. Unlimited cyberscan: can scan object with unlimited size, and display the thickness of cover concrete and bars distributing simultaneously;

4. Actual distributing map of bars: can out put the actual distributing map of bars after several times scanning;

5. Transverse Section Bars Distributing Map: Can output the transverse section map of bars distributing;

6. Test data may be transferred to computer via USB port, allowing real time analysis of data;

7. Rechargeable lithium battery; convenient, value for money, and environmentally friendly.

Parameter of ZBL R650 Concrete Rebar Scanner

Model

ZBL-R800

ZBL-R650

ZBL-R630A

ZBL-R630

ZBL-R620

Protective layer thickness range (mm)

φ6~φ50

φ6~φ50

φ6~φ50

φ6~φ50

φ6~φ50

Max range(mm)

First range

3~98

6~90

3~98

6~90

6~90

Second range

3~196

10~180

3~196

10~180

10~180

 Max allowed error

±1(mm)

3~79

6~70

3~79

6~79

6~79

±2(mm)

57~119

51~110

57~119

60~119

60~119

±4(mm)

70~196

70~180

70~196

70~180

70~180

Applicable range(mm)

φ6~φ50

φ6~φ32

φ6~φ50

φ6~φ32

φ6~φ32

Max allowed error

for diameters measurement

±1

Common type

ü

Closely bars type

ü

Transverse section bars

ü

×

Grid type

ü

×

Signal wave

×

Real time display

×

Scan range

Borderless

Data correction

Automatic

Manually

×

Data transfer

U disk

USB

U disk

USB

Wireless transfer

ü

×

ü

×

LCD

160×128

320×240

160×128

Power

Built-in battery

DC:9V 5 batteries

Size (mm)

212×134×50

190×135×52

212×134×50

190×135×52

Weight(kg)

0.9

1.1

0.9

0.9

0.7

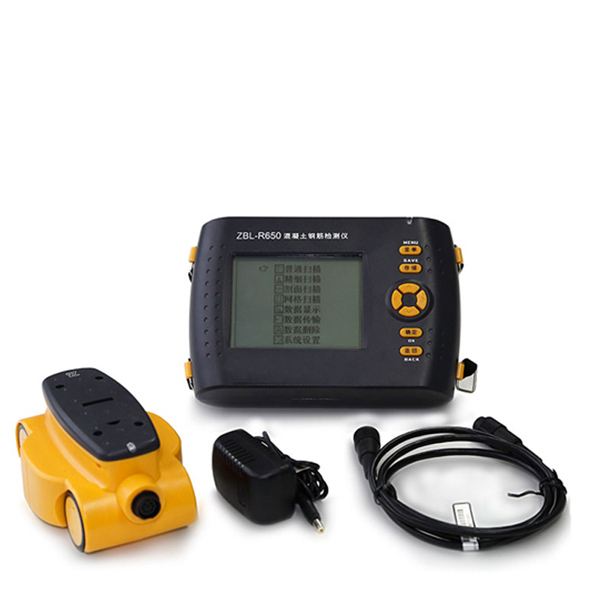

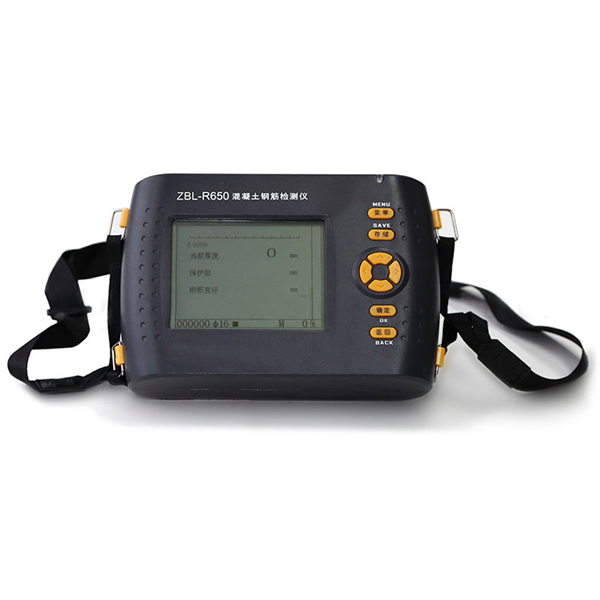

Pictures of ZBL R650 Concrete Rebar Scanner
