ZBL-R800 Multi-Function Concrete Rebar Detector

ZBL-R800 Multi-Function Concrete Rebar Detector is a integrated rebar detector which widely used for testing the thickness of protective layers, finding rebar in concrete, measuring the diameter, loca

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of ZBL-R800 Multi-Function Concrete Rebar Detector

ZBL-R800 Multi-Function Concrete Rebar Detector is a integrated rebar detector which widely used for testing the thickness of protective layers, finding rebar in concrete, measuring the diameter, location, and distribution of rebar as well as for detecting the corrosion content of a rebar.

Features of ZBL-R800 Multi-Function Concrete Rebar Detector

1.Multi-function rebar detector = rebar locator + rebar corrosion detector; an economical and convenient device.

2.This model features the world’s first wireless onsite data transfer function for such a device and remote management is also available

3.Data can be stored on a usb-thumb drive, great for field work

4.This device can generate rebar distribution map and rebar corrosion potential contour graph.

5.Powerful professional analysis-process software allows for the automatic generation of test reports .

Parameter of ZBL-R800 Multi-Function Concrete Rebar Detector

Applicable range

6mm~50mm

Corrosion detection method

Single electrode

Double electrode

Protective layer thickness range (mm)

First range

Second range

Measuring range

±1000mV

0~1000 mV

3~98

3~200

Accuracy

±1mV

±1mV

Maximum allowed error for protective layer

±1 mm

6~59

10~79

Tested points Interval X

0~100 adjustable

20 fixed,

±2 mm

60~69

80~119

Tested points interval Y

0~100  adjustable

0~100  adjustable

±4 mm

70~90

120~200

Power

Built-in chargeable lithium battery

Maximum allowed error for diameters measurement

±1 rebar standard level

Battery Time

>40 hours

Data transmission

wireless transmission

Dimensions

212mm´134mm´50mm

USB port

thumb drive storage available

Weight

0.9kg

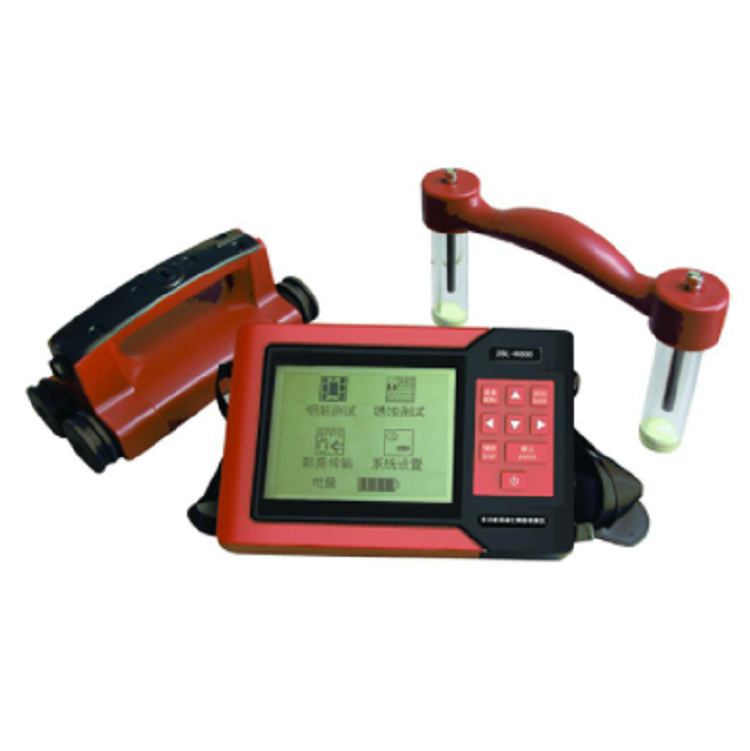

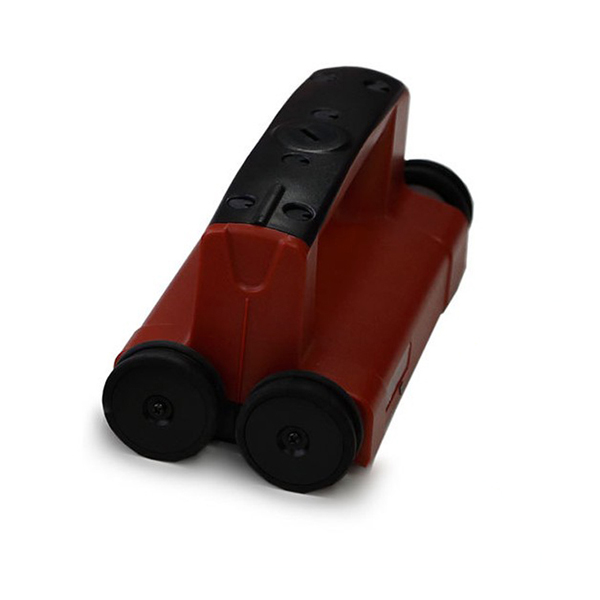

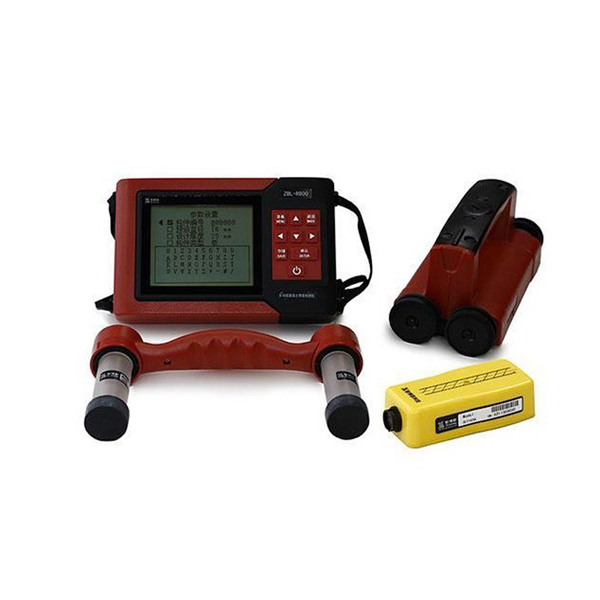

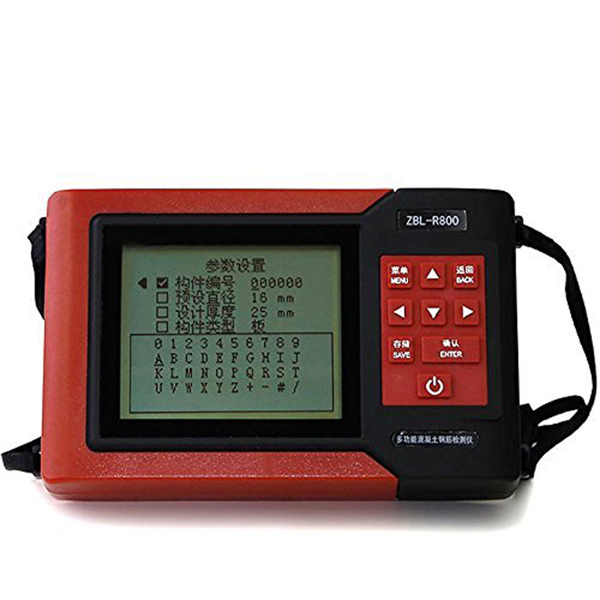

Pictures of ZBL-R800 Multi-Function Concrete Rebar Detector
