3D Scanner for CNC Router Machine

1) 3D Scanner for CNC Router Machine has long;service life is long, uses the high brightness LED cold light source, the heat generation is small, the scanning precision stability is high;

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of 3D Scanner for CNC Router Machine

1) 3D Scanner for CNC Router Machine has long;service life is long, uses the high brightness LED cold light source, the heat generation is small, the scanning precision stability is high;

2) hardware is stable, the system is small, easy to assemble and disassemble, convenient to measure the spot;

3) you can scan dark or even black objects. The vast majority of objects can be scanned directly without surface treatment;

4) high scanning efficiency, can be completed within a few minutes to scan the object;

5) dual cameras adopt strict hardware synchronization mechanism, the measurement data is more clear;

6) using aluminum alloy body, the thermal deformation coefficient is small, and the precision stability of the equipment is higher;

7) more than the point cloud fully automatic stitching;

8) to support the automatic selection of the overlapping points of the best data, automatic cutting, multiple data fusion with high precision, no layered and stripes;

9) using solid and compact appearance design to make the equipment more visual impact, beautiful, lightweight and durable;

10) equipped with a lens shield to prevent accidental drop of equipment damage caused by the lens;

11) easy to learn and easy to use, can learn the system operation within 11 hours, 1-2 working days can be skilled use;

12) one 3D Scanner for CNC Router Machine with multiple use, a variety of scanning specifications, can be applied to a few millimeters to a few meters large object scanning;

13) 3D Scanner for CNC Router Machine can be used for measurement of the output data interface is rich: the measured point cloud data for STL, ASC, PLY, IGES,OBJ, DXF and so on, compatible with the 3D software on the market.

Parameter of 3D Scanner for CNC Router Machine

Single scan range

400x300

200x150

100x75

Single precision

0.015~0.02

0.01~0.015

0.01~0.015

Scanning object size

1000mm~3000mm

300mm~1000mm

50mm~300mm

Image resolution

1,310,000X2(Can upgrade)

Grating light source

LED Cold light source, life of 35000 hours

Splicing method

Center of automatic mosaic

Scan time

<5s

file format

ASC ; PLY ; STL ; OBJ ; IGES


application area

Automobile, large mold, large castings, plastic parts

Wood, furniture, shoes, small appliances, mould

Fine wood, small appliances, shoes, machinery parts

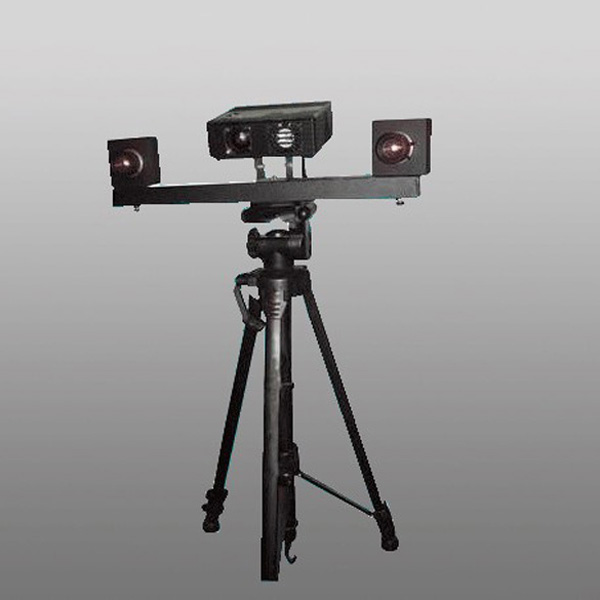

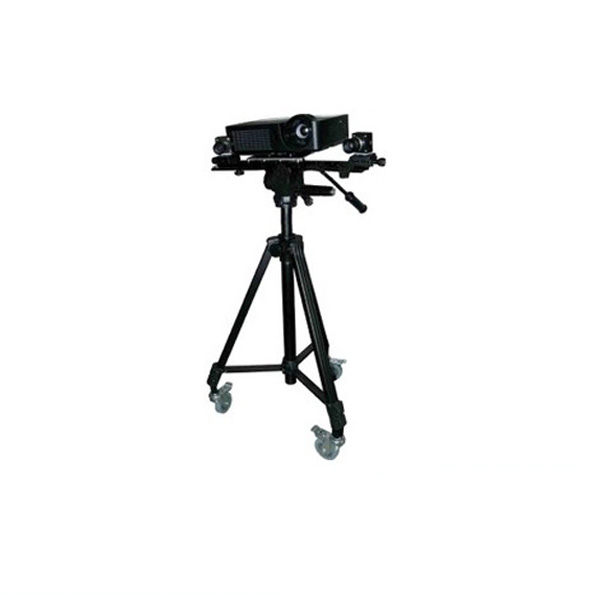

Pictures of 3D Scanner for CNC Router Machine
