Portable 3D Body Scanner

Portable 3D Body Scanner has the advantages of Small size, small footprint, no noise, easy to disassembly and installation, very convenient to carry.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Portable 3D Body Scanner

Portable 3D Body Scanner has following features

1.Portable design: Small size, small footprint, no noise, easy to disassembly and installation,

very convenient to carry.

2."One-click" mark all points automatic splicing: Automatic splicing times of scanning data,

the process is complete with “one-click”. Without manual intervention, no third party software,

to ensure that the data does not appear stratified phenomenon.

3.Non-contact scanning: Measurement without contact with anything, can easily measure the soft, easy to deformation objects; And can be move scanner when scanning large heavy objects,

there is no limit to the trip.

4.The noise of the point cloud processing and trim:  Can pruning and eliminate noise during

scanning and at the end of the scanning. Due to use of high-end industrial lenses and original software denoising module, can overcome the domestic like product cannot solve noise and

floating point problem, save your post-processing and modification time.

5.Standard 3d scanner, its single scanning range is bigger, the corresponding point distance

is thin, suitable for decorative pattern delicate degree requirements is not particularly high,

under the condition of product is bigger, use with photogrammetric system can be auto vehicle scanning


Parameter of Portable 3D Body Scanner

Single scan range

400x300

200x150

100x75

Single precision

0.015~0.02

0.01~0.015

0.01~0.015

Scanning object size

1000mm~3000mm

300mm~1000mm

50mm~300mm

Image resolution

1,310,000X2(Can upgrade)

Grating light source

LED Cold light source, life of 35000 hours

Splicing method

Center of automatic mosaic

Scan time

<5s

file format

ASC ; PLY ; STL ; OBJ ; IGES


application area

Automobile, large mold, large castings, plastic parts

Wood, furniture, shoes, small appliances, mould

Fine wood, small appliances, shoes, machinery parts

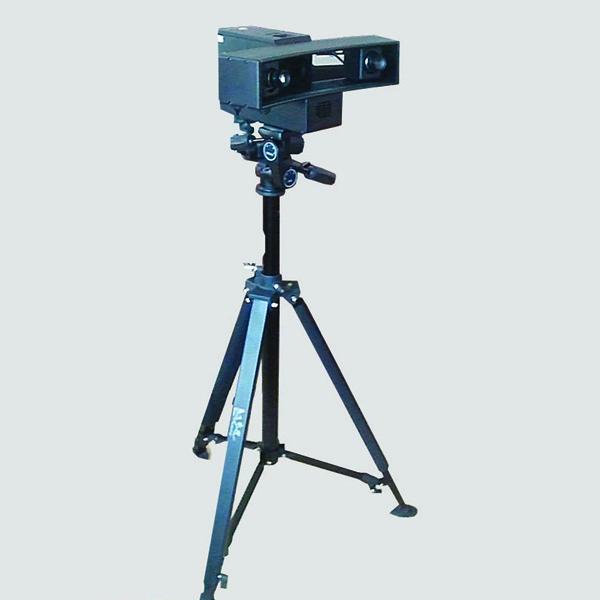

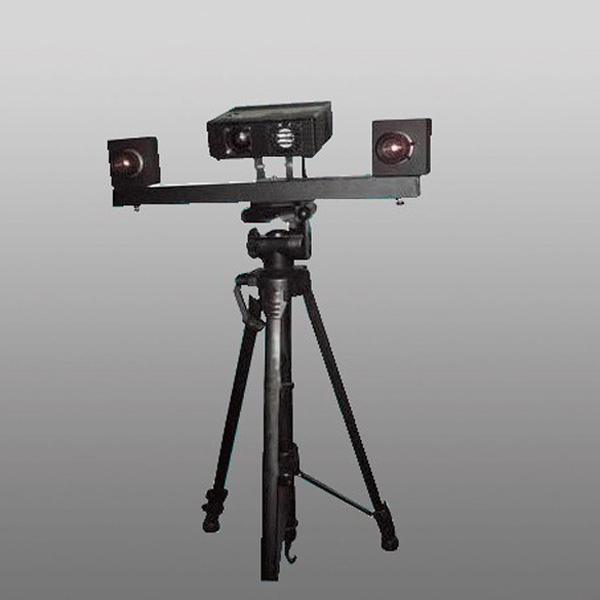

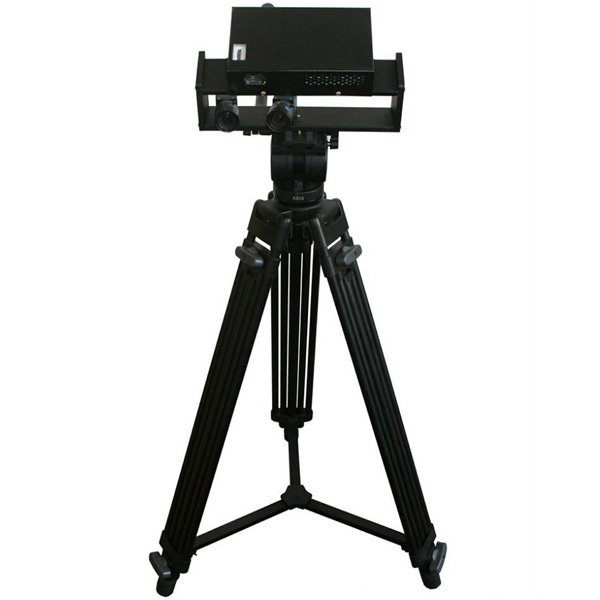

Pictures of Portable 3D Body Scanner
