Porosity Spark Testing Equipment

Measuring range of Porosity Spark Testing Equipment:A:0.03-3.5mm(Epoxy coal tar pitch medium) B:3.5-10.mm(Petroleum asphalt medium)

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Porosity Spark Testing Equipment

1. Measuring range of Porosity Spark Testing Equipment:A:0.03-3.5mm(Epoxy coal tar pitch medium)


B:3.5-10.mm(Petroleum asphalt medium)
C:0.03-10.mm(Epoxy coal tar pitch, Petroleum asphalt medium)

3. Output high voltage:A:0.5-15KV
B:15-35KV
C:0.5-35KV

4. Display:pointer

5. High voltage control system:Ordinary potentiometer adjustment

6. DC supply:12v

7. Consumption:<5w

8. Alarm delay:1-2s

9. High voltage probe:Electronic high voltage generator

10. Packing:metal chest

11. Main dimension: 165mm×155mm×68mm

12. Weight:1.5kg(Including battery)

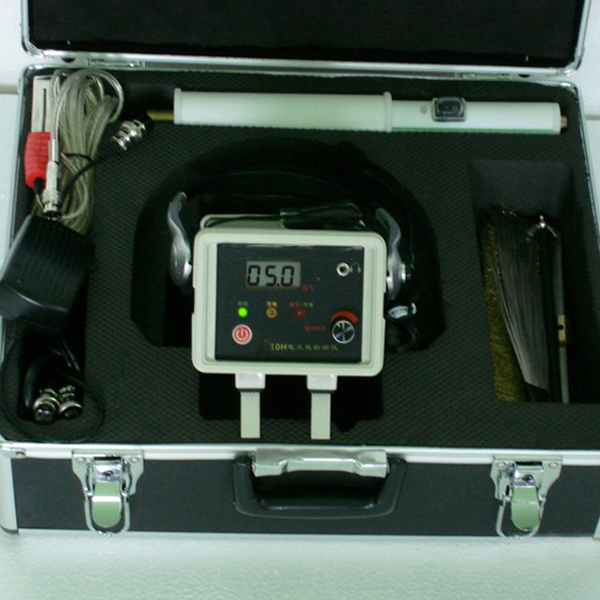

Accessories of Porosity Spark Testing Equipment

Charger, high pressure gloves, long cable, short connecting line, Connecting magnet, earth rod, The brush plate, Manual

Principle of Porosity Spark Testing Equipment

The detector generates a high DC voltage that is applied to the coating surface through a probe. The detector is connected to the substrate via the high voltage returned. When the probe is passed over a coating flaw, then the electrical circuit is completed and current flows from the probe to the substrate. As a result, audible and visual alarms are activated in the detector and a spark may be produced at the flaw.

Parameter of Porosity Spark Testing Equipment

Measuring range

0.03-3.5mm(Epoxy coal tar pitch medium)

Output high voltage

0.5-15KV

Display

pointer

High voltage control system

Ordinary potentiometer adjustment

DC supply

12v

Consumption

<5w

Alarm delay

1-2s

High voltage probe

Electronic high voltage generator

Packing

metal chest

Main dimension

 165mm×155mm×68mm

Weight

1.5kg(Including battery)

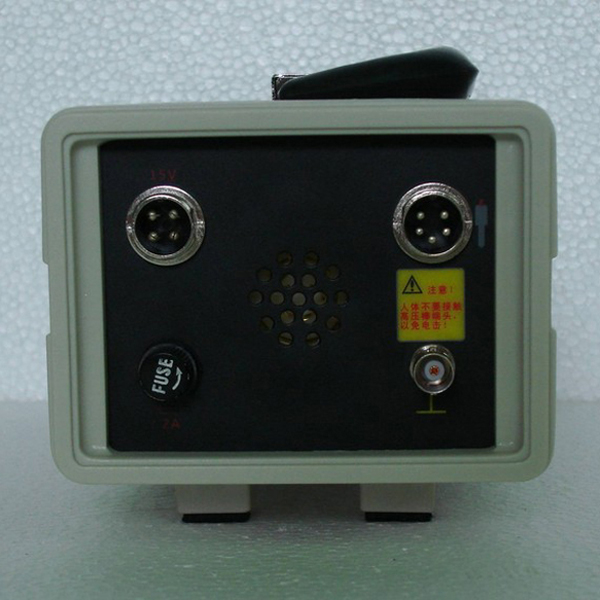

Pictures of Porosity Spark Testing Equipment
