PQWT-200S Portable Water Detector Finder Machine for 200 Meters

PQWT-200S Portable Water Detector Finder Machine for 200 Meters can completed 500-5000 meters above the profile measurement, understanding of different depths of geological anomalies, compared with th

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of PQWT-200S Portable Water Detector Finder Machine for 200 Meters

1. High efficiency

PQWT-200S Portable Water Detector Finder Machine for 200 Meters can completed 500-5000 meters above the profile measurement, understanding of different depths of geological anomalies, compared with the traditional artificial electric field method of exploration speed and efficiency are improved many times.

2. Easy to carry

PQWT-200S Portable Water Detector Finder Machine for 200 Meters adopted natural electromagnetic field as a signal source, does not require bulky artificial power

source part of the field, the whole weight of not more than 2 kg, easy to carry.

3. Simple operation

Instrument by the high-speed CPU automatic control, 10 minutes to learn instrument

operation, for those without experience in the exploration staff can be completed within

2 hours of relevant training.

4. Good accuracy, high accuracy

All the core components of the original imports, the use of high-performance amplifier and

high-performance AD converter, FFT digital filtering technology. Resolution up to 0.1mV,

± 1% of the high-precision measurement, in a large number of field tests to obtain the traditional

artificial electric field method comparable to the stability of the instrument.

5. Anti-interference ability

Advanced anti-jamming technology, multiple anti-jamming design, through the instrument selection and digital processing, even in the city, electrical interference or other external interference of the work area, can observe the repetitive good geological profile.

6. the cloth is very flexible: the traditional and unique cloth pole way

The instrument adopts the scientific cloth pole way, but also may obtain the high accuracy data and may save the gathering time, thus realizes the biggest benefit, the more clear analysis geology structure.

Parameter of PQWT-200S Portable Water Detector Finder Machine for 200 Meters

Model

PQWT-200S

Measuring Depth

200 meters

Measurement Range

 0.1mV-255mV, range automatically converted.

Measurement Accuracy

 0.1mV

Measuring Frequency

 profile

A/D Conversion

16-bit 1MsPs

Input Impedance

 ≧10MΩ

Power Supply

 DC7.2V 300mAh Rechargeable Battery

Working Temperature

 -20℃~70℃

RH

 ≦85%

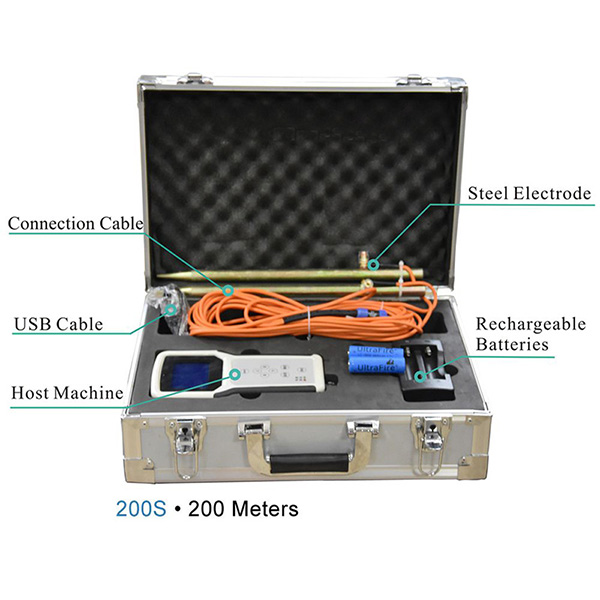

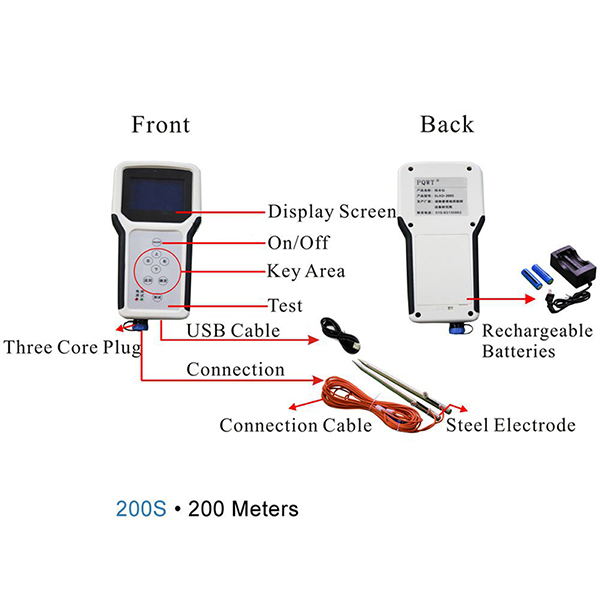

Pictures of PQWT-200S Portable Water Detector Finder Machine for 200 Meters
