PQWT-TC150 Automatic Mapping Underground Water Detector

PQWT-TC150 Automatic Mapping Underground Water Detector using natural electric field source as a working farm, with resistivity contrasts underground rocks and minerals or groundwater

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of PQWT-TC150 Automatic Mapping Underground Water Detector

PQWT-TC150 Automatic Mapping Underground Water Detector using natural electric field source as a working farm, with resistivity contrasts underground rocks and minerals or groundwater, based on measuring the natural electric field on the surface of the N different frequency electric field component, according to their different variation to study Abnormal changes in geological bodies produce, reaching solve geological problems one electrical prospecting methods. According to this theory the design and production of equipment called potential frequency of detecting instrument, referred to natural selected frequency electric field instrument or instruments for geological exploration work.

Parameter of PQWT-TC150 Automatic Mapping Underground Water Detector

Model

PQWT-TC150

Measuring Depth

150 meter

Measurement Range

0mV-2000mV, instrument automatic conversion range

Measurement Accuracy

 0.001mV

Measurement Channel

6

Measuring Frequency

 Single, triple and 40 frequency

Optional Language

Chinese, English, French, Arabic

A/D Conversion

12-bit 1Msps

Input Impedance

 ≧10MΩ

Power Supply

 DC12V4000mAh Built-in Battery

Power Consumption

 About 4W

Working Temperature

 -10℃~50℃

RH

 ≦85%

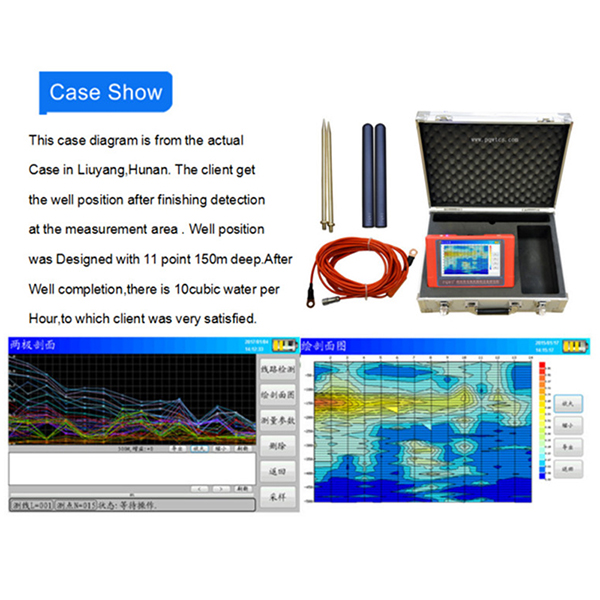

Pictures of PQWT-TC150 Automatic Mapping Underground Water Detector
