PQWT-TC300 Ground Geophysical Prospecting Water Finder

PQWT-TC300 Ground Geophysical Prospecting Water Finder instrument is the use of natural earth field source without going through artificial field that is omitted clumsy power supply system in order to

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of PQWT-TC300 Ground Geophysical Prospecting Water Finder

PQWT-TC300 Ground Geophysical Prospecting Water Finder instrument is the use of natural earth field source without going through artificial field that is omitted clumsy power supply system in order to achieve the simple, lightweight instrument.

After data collection by the unique built-in computing functions, the instrument can automatically draw curve graph and profile map with one button, according to the profile map, you can clearly understand the geological structure and quickly determine the location of ore body (seam), hollow (cave), water (aquifer) etc.

Parameter of PQWT-TC300 Ground Geophysical Prospecting Water Finder

Model

PQWT-TC300

Measuring Depth

300 meter

Measurement Range

0mV-2000mV, instrument automatic conversion range

Measurement Accuracy

 0.001mV

Measurement Channel

6

Measuring Frequency

 Single, triple and 40 frequency

Optional Language

Chinese, English, French, Arabic

A/D Conversion

12-bit 1Msps

Input Impedance

 ≧10MΩ

Power Supply

 DC12V4000mAh Built-in Battery

Power Consumption

 About 4W

Working Temperature

 -10℃~50℃

RH

 ≦85%

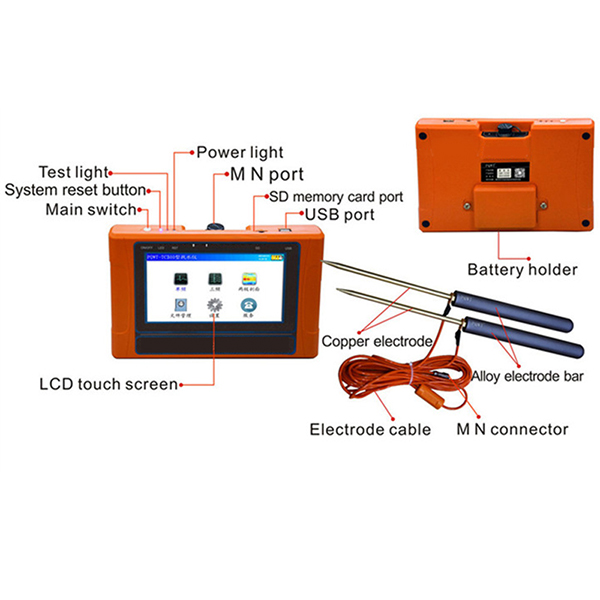

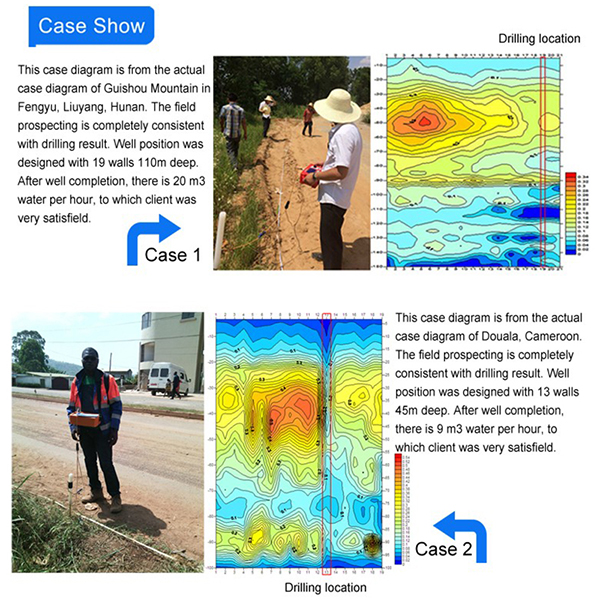

Pictures of PQWT-TC300 Ground Geophysical Prospecting Water Finder
