ZBL U600 Portable Ultrasonic Flaw Detector

ZBL U600 Portable Ultrasonic Flaw Detector is used to examine the internal defects of various materials such as steel, copper, aluminum, hard alloys, castings, polymethyl methacrylate, composite mater

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of ZBL U600 Portable Ultrasonic Flaw Detector

ZBL U600 Portable Ultrasonic Flaw Detector is used to examine the internal defects of various materials such as steel, copper, aluminum, hard alloys, castings, polymethyl methacrylate, composite materials, weld joints, etc. This device can detect defects such as holes, cracks, loosening, impurities, incomplete penetration, etc. This instrument is practical and portable, and it can be used in a variety of fields such as aerospace, military industry, chemical industry, electronics, iron & steel, metallurgy, railroad, train, automobile, motorbike, machinery, security checking, pipelines, general construction, etc.

Features of ZBL U600 Portable Ultrasonic Flaw Detector

1.High resolution color LCD display with echodynamic simulation real-time measuring system.
2.Reference waveform and onsite A scan are displayed simultaneously in different colors, facilitates the analysis of tests results.
3.400kHz – 20 MHz frequency range. The frequency can be adjusted to suit the appropriate requirements and enables optimized performance.
4.15Hz – 1500 Hz pulse repetition frequency eliminates virtual image echo, and effectively eliminates the long acoustic wave during material testing.
5.Operators can choose displayed information according to their needs.

Parameter of ZBL U600 Portable Ultrasonic Flaw Detector

Vertical linearity error

≤3%

Monitor

6.5” large color LCD screen

Horizon linearity error

≤0.2%

Display resolution

640×480

Detection sensitivity headroom

>50dB

Operating method

Shortcut key+photoelectric knob

Dynamic range

>40 dB

Power

6.4Ah lithium battery,operation >8hrs

Frequency range

0.5-20 MHz

Dimension

      262mm× 194 mm× 50 mm

Resolution

>26 dB

Weight (lithium battery included)

2.2kg

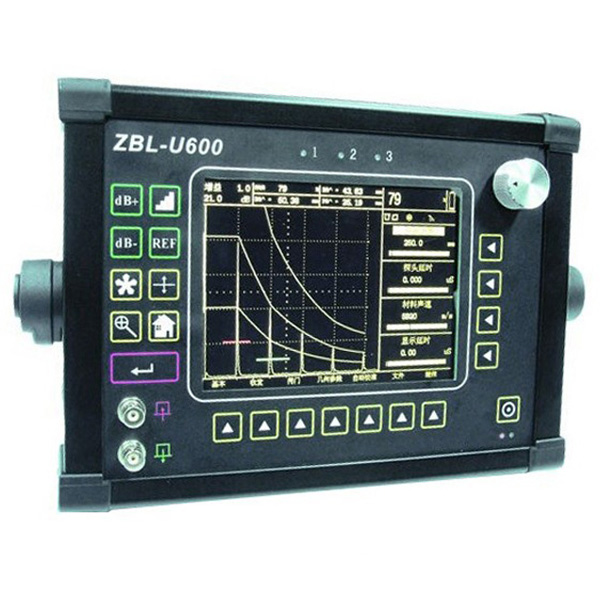

Pictures of ZBL U600 Portable Ultrasonic Flaw Detector
