ZBL-U5700 Multichannel Ultrasonic Pile Integrity Tester

ZBL-U5 series Multichannel Ultrasonic Pile Integrity Tester is the perfect device for cross-hole acoustic wave transmission method. This instrument is specifically designed for testing the pile founda

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of ZBL-U5700 Multichannel Ultrasonic Pile Integrity Tester

ZBL-U5 series Multichannel Ultrasonic Pile Integrity Tester is the perfect device for cross-hole acoustic wave transmission method. This instrument is specifically designed for testing the pile foundation integrity by using acoustic a wave transmission method, and contains the unique multi-channel self-emission/self-receiving function.

ZBL-U5700 Multichannel Ultrasonic Pile Integrity Tester also enables the concrete pile all-profile test with only one lift (3 or 4 acoustic testing pipes embedded), which makes the detection process more efficient and simpler.

Features of ZBL-U5700 Multichannel Ultrasonic Pile Integrity Tester

Testing 3 or 6 profiles per lift, the lifting speed > 60  meters per min(5 points per meter);

Gains and delays are adjustable for any channel at any time, ensures the data accuracy and reliability;

Display all 6 profile information on one screen, thus making the quality of the entire rebar pile clear;

The expert real-time online help function makes operation simple;

4 Radical transducer part for colors, makes simple operation convenient and efficient;

During testing, can adjust test point internal at any time, do “encryption” test point at important key parts;

Can switch viewing bar graph、wave train graph、Depth curve, and record user’s use habits;

Horizontal testing, inclined testing, retest, and finer increment testing multi modes, allow for the accurate identification of pile shaft defects;

Built-in mass SSD (solid state disk) and mass lithium battery are perfect for field work;

Data transfer trough U disk, Fast and convenient.

Parameter of ZBL-U5700 Multichannel Ultrasonic Pile Integrity Tester

Parameter

Specification

Amplifier frequency band

 1~10k (Hz)

A/D resolution

24 bit A/D

Sampling time intervals

6.4μs~1638.4μs

Maximum length of sampling

≥2048

Amplitude nonlinear degree

≤10%

Dynamic range

≥180 (dB)

Error of time indication

≤1%

Gain error

≤1dB%

Transducer sensitivity

≥100 mV/g (Acceleration Mode)

Amplifier frequency range

0.5∼9000 Hz

Battery Operating Time

>5 hours

Power

lithium battery

Total weight

Approx 0.34kg

Fixed point magnification

1, 2, 4, 8, 16, 32,64

Controller

PDA with sunlight viewable touchscreen display

Data Storage

Yes

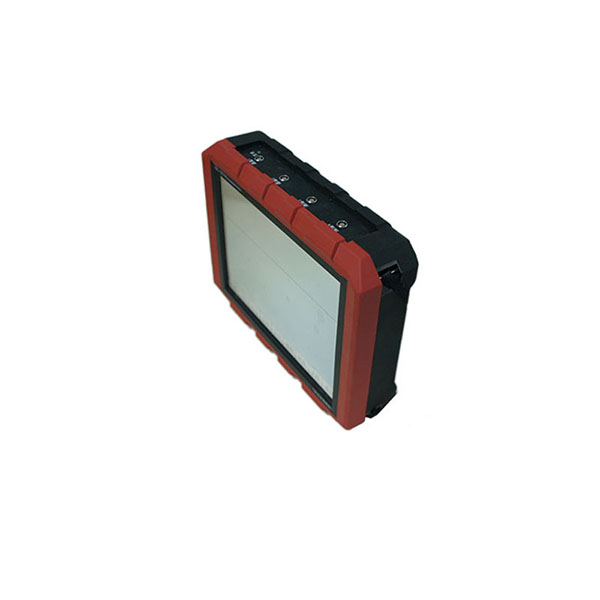

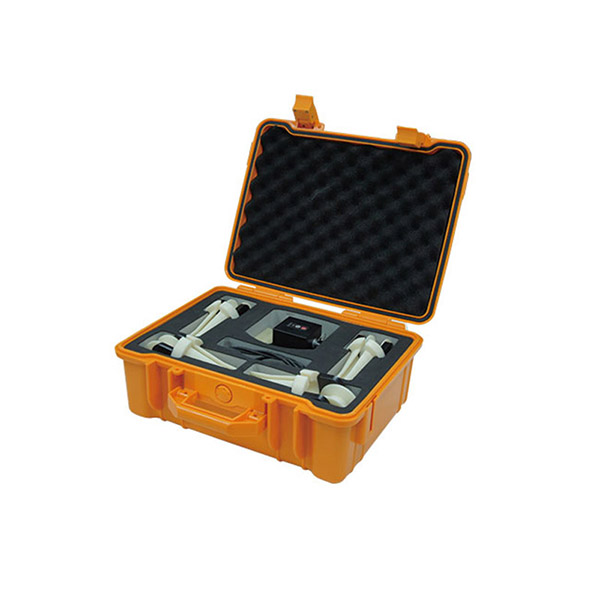

Pictures of ZBL-U5700 Multichannel Ultrasonic Pile Integrity Tester
