ZBL U520A Auto Ultrasonic Flaw Detection Equipment

The auto testing system of ZBL U520A Auto Ultrasonic Flaw Detection Equipment is an upgrade of the U520 with the inclusion of an auto-raising system.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of ZBL U520A Auto Ultrasonic Flaw Detection Equipment

The auto testing system of ZBL U520A Auto Ultrasonic Flaw Detection Equipment is an upgrade of the U520 with the inclusion of an auto-raising system.

The use of the mechanical pulley auto-raising system facilitates the movement and precision location of the probe inside acoustic testing tubes. When moving the probe, pile testing system may auto-record the acoustic parameters and waveform of every testing point according to pre-set spacing between test points. The test speed has been improved markedly. The test of a 100 meters profile, with 10 points in every 10 meters, requires only 2 minutes to complete. With this system, 1~2 people may complete the task which usually requires 2~3 person to complete. Furthermore, the whole profile test results are available at anytime, even during the test process, by simply referring to the curves displayed in the screen during the testing procedure.

U520A pile auto-testing system is mainly utilized in the auto-testing of the integrity of pile using the One Hole Acoustic Penetration Method. All other functions of ZBL U520A Auto Ultrasonic Flaw Detection Equipment are the same as the U520.



Features of ZBL U520A Auto Ultrasonic Flaw Detection Equipment

1. ZBL U520A Auto Ultrasonic Flaw Detection Equipment introduced two methods to attach depth counters (acoustic testing tube mouth and tripod), convenient and rapid, suitable for a variety of on-site situations.

2. Guide wheel inside the pipe mouth assures the movement and convenient location of the probe. This reduces the wear of the cable inside the pipe mouth and lengthens the lifetime of the probe.

3. The spacing between test points may be arbitrarily set. The pulley system smoothly and continuously raises the probe at a rapid pace (the max speed is 1.0 m/s)

4. Real-time display and automatic saving of the plotted graph of pile integrity, the location of test points, the acoustic wave transit time of the first wave, the waveform, the wave range etc.

5. Arbitrarily retest and redisplay of the sampling waveform of every test point. Preventing the error in on-site testing and on-site judgment. Convenient and rapid.

6. Automatic continuous sampling, saving testing information of every test point such as depth, acoustic parameter, waveform etc. producing a stable waveform, with no distortion, allowing accurate judgment of the acoustic parameters, with a good level of consistency, greatly improving the speed of on-site detection. Automatically save the data and waveform of test points during testing procedure, ensuring that no data is lost in the event of a sudden loss of power.

7. ZBL U520A Auto Ultrasonic Flaw Detection Equipment is possible to access the analyses interface at anytime during the testing procedure, and to perform a simultaneous analysis of every profile which has been tested.

8. For convenience and reliability the data inside the apparatus are managed in the order, construction site, pile number, profile.

9. Double channel auto-testing available, which improves the efficiency of detection.

Parameter of ZBL U520A Auto Ultrasonic Flaw Detection Equipment

Instrument model

ZBL – U520A

(automatic pile-testing system)

ZBL – U520

ZBL – U510

Main control unit

industrial-grade dedicated system

Display

6.4 Inch high brightness TFT true color LCD

Automatic pile-testing record system

Dual-channel automatic pile-testing record system

none

none

Channel number

1 emitter + 2 receiver + 1 external-trigger

1 emitter + 1 receiver

Trigger

Signal trigger, external trigger

Signal trigger

Sampling interval (period)

0.05μs~400μs ,14  adjustable settings

Resolution

0.05μs

Measuring range

0~629000μs

Amplifier gain

82dB

Amplifier bandwidth

10 ~250 kHz

Receiver sensitivity

≤30 μV

Range resolution

0.39%

Emission voltage (V)

65, 125, 250, 1000 v adjustable

Emission pulse-width

20 μs ~ 20 ms adjustable

Storage capacity

256 M (CF card ) + 1 G (memory card )

Port

 USB

Operation mode

Shortcuts keys  + photoelectric-knob

power

Internal

Built-in lithium battery≥6hrs

External

Extenal port:9V DC

Alternating Current Power

220V,50Hz

Size (mm)

250×185×58

Weight

1.8 kg (including internal battery)

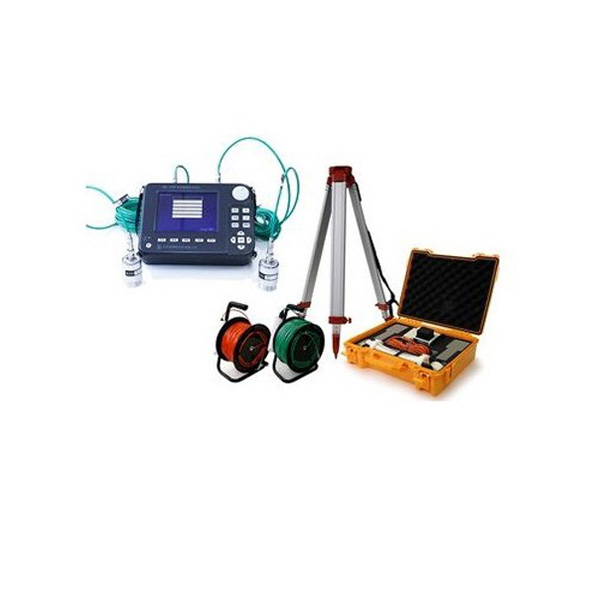

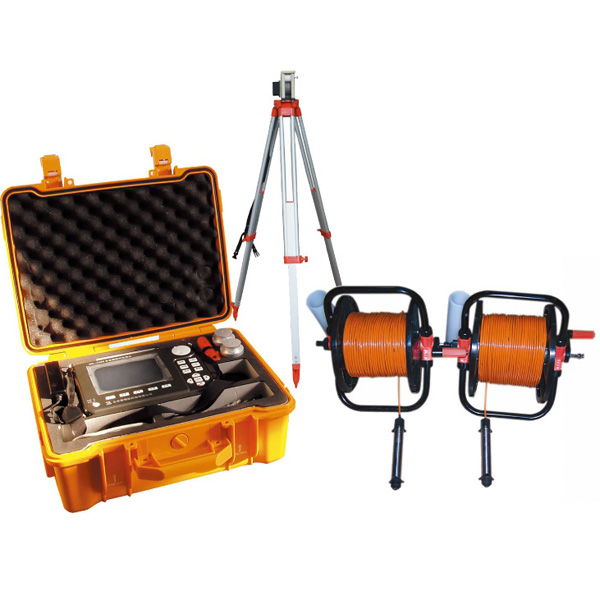

Pictures of ZBL U520A Auto Ultrasonic Flaw Detection Equipment
