Dynamic Pile Testing Equipment

By using the reflected wave method, the Dynamic Pile Testing Equipment is used to assess the integrality of concrete pile and identify the extent and location of the pile defect.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Dynamic Pile Testing Equipment

By using the reflected wave method, the Dynamic Pile Testing Equipment is used to assess the integrality of concrete pile and identify the extent and location of the pile defect.

Application of Dynamic Pile Testing Equipment

Dynamic Pile Testing Equipment can be used for testing perfusion pile and hammer pile. It can also be used for testing the exposed top surface of constructions such as pillars.

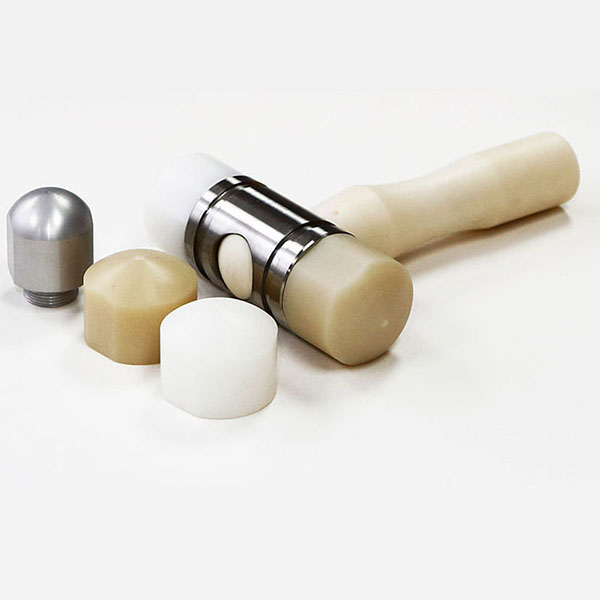

Hammer instrument: use different types of hammer (different energy/material) for different types of piles (lengths, etc.)

Parameter of Dynamic Pile Testing Equipment

Item

Specifications

Item

Specifications

Control Mode

Embedded platform,Win CE Operation System

Monitor

8.4 inch,high brightness,TFT Color LCD

Data storage

2GB,SD card

Operation Mode

Touch screen

Trigger

Signal trigger

Ports

USB port

Noise voltage of the system

≤2 mV

Dynamic range

³184 dB

Amplifier frequency range

1Hz~10kHz

Input impedance

³1 MW

Sampling time intervals

6µs~64ms

Time resolution

6µs

Max length of sampling

³1024

Gain error

≤1 dB

Amplitude nonlinear degree

≤10%

Timing accuracy

≤1%

Floating point magnification (time)

1~256

Sentinel magnify (time)

1~1,000,adjustable

A/D resolution

16 bit A/D,8 bit floatingpoint

Max magnify (times)

256000

Number of channels

2

Transducer sensitivity

³100 mv/g(acceleration mode)

Consistency of phase position
of two channels

±3° or 0.05ms

Frequency range of
Transducer

0.5~9000 Hz(acceleration mode)

Amplitude consistency of two channels

≤3% or ≤±0.2dB

Continuous operating hours

>5 hrs

Interference between channels

≤1%

Power

AC:220V±10%,DC:+12V

Dimensions

256mm´188mm´63.5mm

Weight

2.3kg(lithium battery included)

Pictures of Dynamic Pile Testing Equipment
