Zbl-F610 Concrete Crack Depth Measuring Gauge

Zbl-F610 Concrete Crack Depth Measuring Gauge is a professional & intelligent measuring gauge instrument used for depth detection of cracks located within non-metal surfaces such as concrete.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Zbl-F610 Concrete Crack Depth Measuring Gauge

Zbl-F610 Concrete Crack Depth Measuring Gauge is a professional & intelligent measuring gauge instrument used for depth detection of cracks located within non-metal surfaces such as concrete.

The testing system has been improved through numerous experiments, which enables the test results to be more accurate and the testing process more efficient and simpler.

Features of Zbl-F610 Concrete Crack Depth Measuring Gauge

Zbl-F610 Concrete Crack Depth Measuring Gauge can auto identification of the crack depth and display of results instantly;

User friendly interface;

Windows-based software for data analysis, file searching and storing, etc., also produces reports in Windows Word format;

Handheld; weights less than 800g;

Zbl-F610 Concrete Crack Depth Measuring Gauge equipped built-in rechargeable lithium battery, operates > 12 hrs on a single full charge.

Parameter of Zbl-F610 Concrete Crack Depth Measuring Gauge

Range

5-500mm

Resolution ratio

320×240

Accuracy

±5mm(or ≤±10%)

Ports

USB port

Storage

1,000 tested objects,124 cracks each

Power Supply

Built-in lithium battery, >12 hrs on single full charge

Size

190mm×135mm×52mm

weight

740g(battery included)

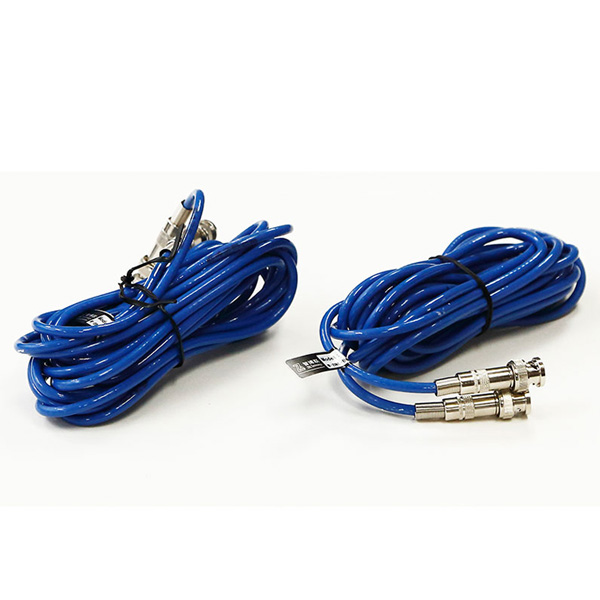

Pictures of Zbl-F610 Concrete Crack Depth Measuring Gauge

Your Name bitian

E-Mail Address bitian

Enquiry bitian

New Comment

  • S***y
    Can the transducers of Ultrasonic Crack Depth Measuring Instruments be submerged underwater? We need an instrument to check the dept of cracks on a dam surface.
