ZBL F800 All Purpose Concrete Crack Width and Depth Detector

ZBL F800 All Purpose Concrete Crack Width and Depth Detector is a widely used ultrasonic Nondestructive detector for measuring crack width and depth.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of ZBL F800 All Purpose Concrete Crack Width and Depth Detector

ZBL F800 All Purpose Concrete Crack Width and Depth Detector is a widely used ultrasonic Nondestructive detector for measuring crack width and depth.

Standard and high with two color microscopic amplification probes of BL F800 All Purpose Concrete Crack Width and Depth Detector are available to meet the different needs of the width measurement

Both standard and easy way of depth measurement.

Standard ultrasound transducer bracket, measuring point spacing precisely adjustable, exempt scene crossed, and greatly improve the detection efficiency. The image automatically identify and width intelligent computing technology, the location of the fracture without adjustment, on-site detection convenient.

Crack Automatic Recognition computing, real-time display of the cracks in value, a high degree of intelligence.

The touch-screen operation, easy and quick.

BL F800 All Purpose Concrete Crack Width and Depth Detector tests the whole process of voice and text prompts, man-machine interface is extremely friendly.

Instrument built-in help documentation and demo video, user-skilled instrument operation

Mass storage, 2GB capacity SD card can store more than 100,000 measurement file

High-efficiency, energy-saving rechargeable lithium battery-powered.

Parameter of ZBL F800 All Purpose Concrete Crack Width and Depth Detector

Technical Data

Specifications

Hardware Platform

ARM9 embedded platform, touch screen

Display

4.3 inch TFT high brightness color LCD screen

Width

Range

0mm~6mm

Accuracy

≤±0.01mm

Depth

Range

5mm~500mm

Accuracy

≤±5%

Storage

Built-in 2G SD Card (>10,000 files)

Power supply

Built-in lithium battery, continuous working for more than 8 hours

Operating Temperature

-10°C~+55°C

Operating Humidity

≤90%RH

Dimensions

156mm×115mm×33mmm

Weight

740g (Lithium battery included)

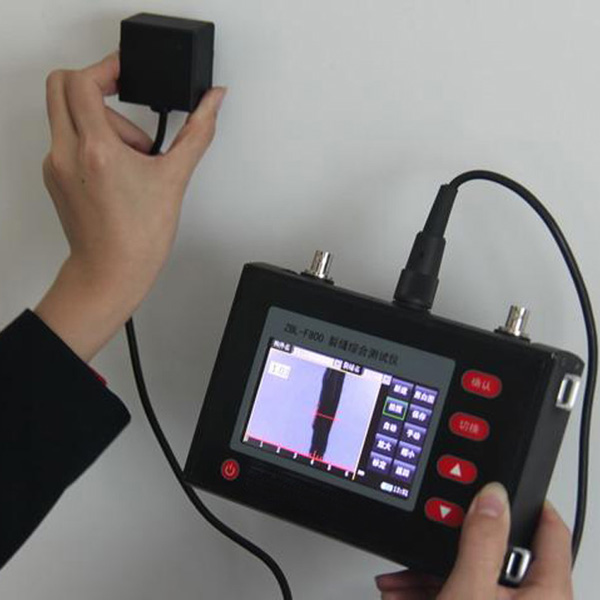

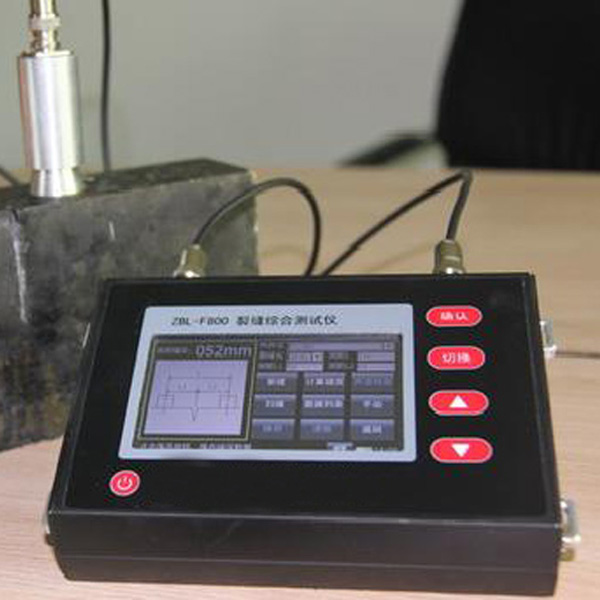

Pictures of ZBL F800 All Purpose Concrete Crack Width and Depth Detector
