ZBL-P8000 Wireless Dynamic Testing Equipment for Pile

ZBL-P8000 Wireless Dynamic Testing Equipment for Pile has wide dynamic range, low noise amplifier system, 24 bit A / D sampling;signal has good stability, so the defect and pile bottom can be identifi

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of ZBL-P8000 Wireless Dynamic Testing Equipment for Pile

ZBL-P8000 Wireless Dynamic Testing Equipment for Pile has wide dynamic range, low noise amplifier system, 24 bit A / D sampling;signal has good stability, so the defect and pile bottom can be identified easily.

Wireless connectivity between accelerometer and PDA allows easy and more flexible usage on site. PDA can be utilized upto 10 meters away from the accelerometer.

Real time on-site processing such as smoothing, differential, filtering,exponent and linear amplification can be given to tested wave form.

New wavelet processing

The signal noise can be eliminated by taking average superposition of multiple signals. Superposition signals can be checked at any time,poor-quality signals can be rejected.

Project/pile testing data can be easily saved, accessed, edited, or deleted.

Gain value can be adjusted according to length of pile, condition of pile top surface.

Parameter of ZBL-P8000 Wireless Dynamic Testing Equipment for Pile

Parameter

Specification

Amplifier frequency band

 1~10k (Hz)

A/D resolution

24 bit A/D

Sampling time intervals

6.4μs~1638.4μs

Maximum length of sampling

≥2048

Amplitude nonlinear degree

≤10%

Dynamic range

≥180 (dB)

Error of time indication

≤1%

Gain error

≤1dB%

Transducer sensitivity

≥100 mV/g (Acceleration Mode)

Amplifier frequency range

0.5∼9000 Hz

Battery Operating Time

>5 hours

Power

lithium battery

Total weight

Approx 0.34kg

Fixed point magnification

1, 2, 4, 8, 16, 32,64

Controller

PDA with sunlight viewable touchscreen display

Data Storage

Yes

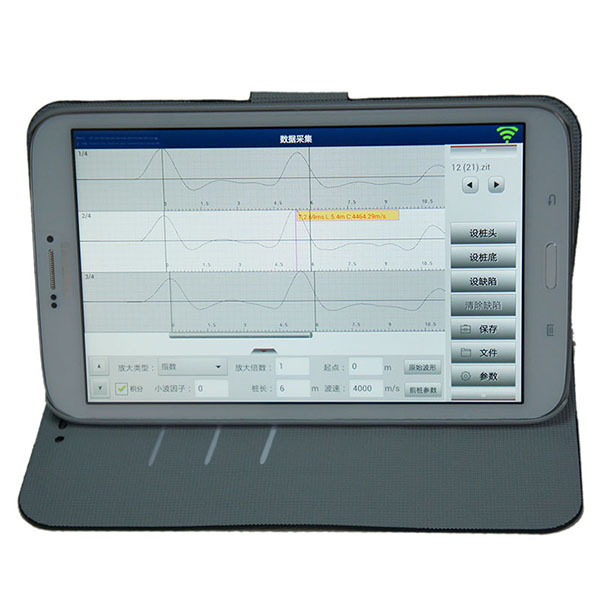

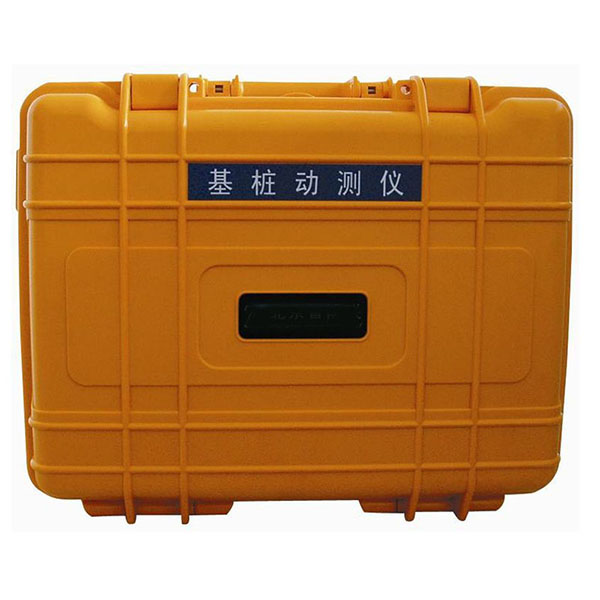

Pictures of ZBL-P8000 Wireless Dynamic Testing Equipment for Pile
