Ultrasonic Crack Depth Measuring Instruments

Ultrasonic Crack Depth Measuring Instruments is a professional & intelligent measuring gauge instrument used for depth detection of cracks located within non-metal surfaces such as concrete.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Ultrasonic Crack Depth Measuring Instruments

Ultrasonic Crack Depth Measuring Instruments is a professional & intelligent measuring gauge instrument used for depth detection of cracks located within non-metal surfaces such as concrete.

The testing system of Ultrasonic Crack Depth Measuring Instruments has been improved through numerous experiments, which enables the test results to be more accurate and the testing process more efficient and simpler.

Parameter of Ultrasonic Crack Depth Measuring Instruments

Range

5-500mm

Resolution ratio

320×240

Accuracy

±5mm(or ≤±10%)

Ports

USB port

Storage

1,000 tested objects,124 cracks each

Power Supply

Built-in lithium battery, >12 hrs on single full charge

Size

190mm×135mm×52mm

weight

740g(battery included)

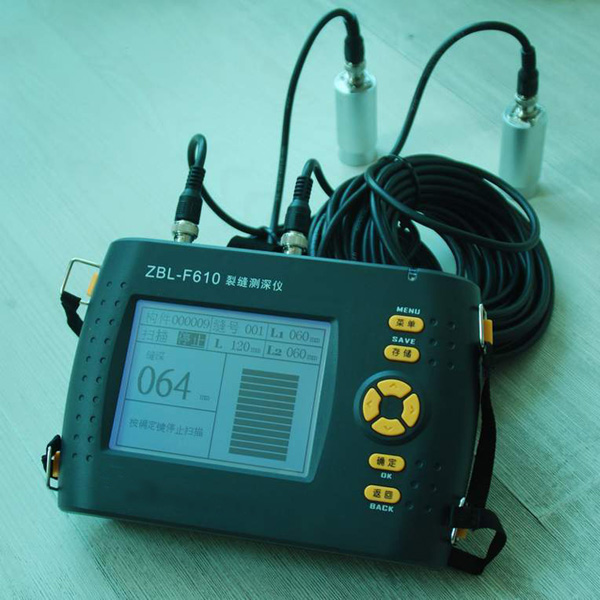

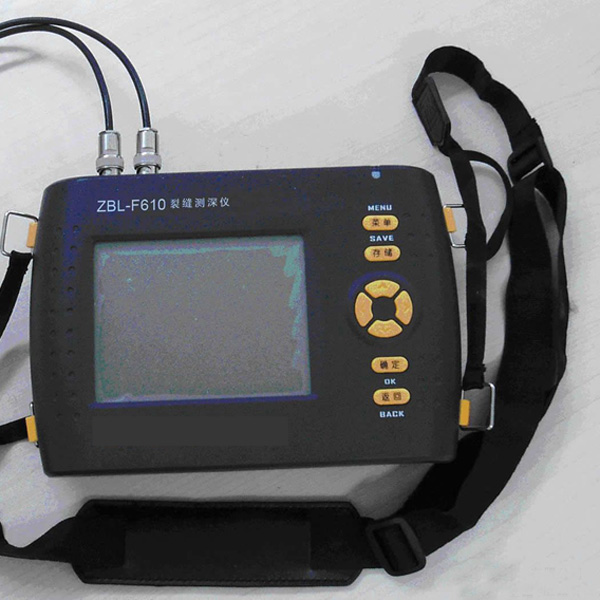

Pictures of Ultrasonic Crack Depth Measuring Instruments
