F800 Concrete Crack Measuring Tester Device

F800 Concrete Crack Measuring Tester Device is used for real time automatic detection of surface crack width on different material structure and real time observation of cracking process. It is a Nond

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of F800 Concrete Crack Measuring Tester Device

F800 Concrete Crack Measuring Tester Device is used for real time automatic detection of surface crack width on different material structure and real time observation of cracking process. It is a Nondestructive detection for concrete crack.

This F800 Concrete Crack Measuring Tester Device is a kind of intelligent test equipment possessing the functions of automatic detection, data memory and output. Real time During the detection, the system take the image of crack automatically and display real-time image and width data of cracks. The image data can be saved automatically.

Application of F800 Concrete Crack Measuring Tester Device

F800 Concrete Crack Measuring Tester Device is widely used for non-destructive testing of the crack width of bridges, tunnels, constructions and such concrete structures.

Parameter of F800 Concrete Crack Measuring Tester Device

Technical Data

Specifications

Hardware Platform

ARM9 embedded platform, touch screen

Display

4.3 inch TFT high brightness color LCD screen

Width

Range

0mm~6mm

Accuracy

≤±0.01mm

Depth

Range

5mm~500mm

Accuracy

≤±5%

Storage

Built-in 2G SD Card (>10,000 files)

Power supply

Built-in lithium battery, continuous working for more than 8 hours

Operating Temperature

-10°C~+55°C

Operating Humidity

≤90%RH

Dimensions

156mm×115mm×33mmm

Weight

740g (Lithium battery included)

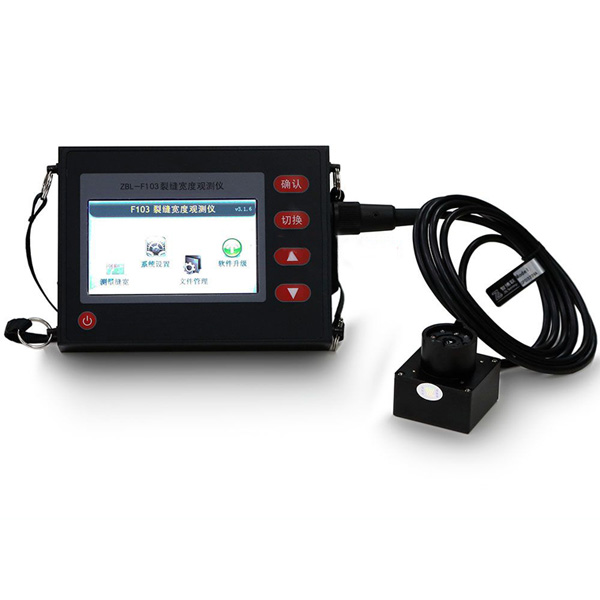

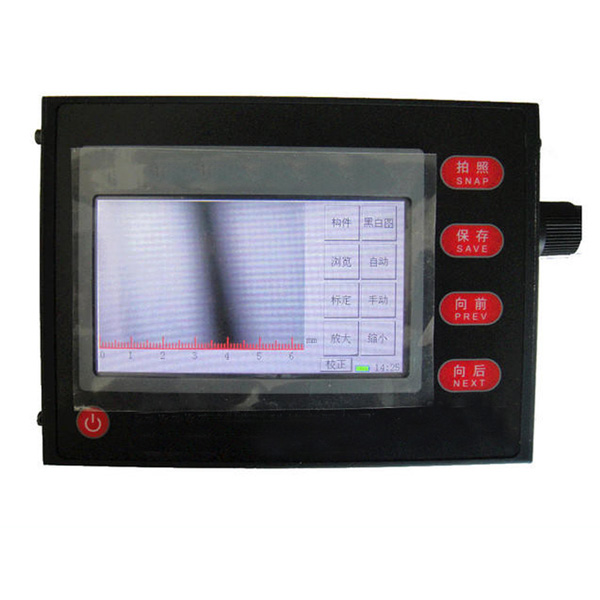

Pictures of F800 Concrete Crack Measuring Tester Device
